Copper Clad Aluminum Alloy wire
Model: CCAA
Diameter: 0.08mm~3mm
Capacity:300 tons/m
Standard: JBT 11867-2014
Copper Clad Aluminum Alloy wire (CCAA) is a kind of bimetallic wire by covering copper on the surface of aluminum alloy rod. CCAA has high tensile strength same as CCAM wire, and high conductivity same as CCA wire . CCAA wire can be processed same as pure copper wire.Features: Compared to Copper wire 1. Small density, light weight 2. No brittleness under low temperature, good creepage resistant Compared to CCAM wire 1. Higher conductivity; 2. No electrochemical corrosion (oxidation).corrosion will lead to wire breaking Compared to CCA wire 1.Higher tensile strength 2.Good flexibility 3.Good SolderabilityCharacteristics

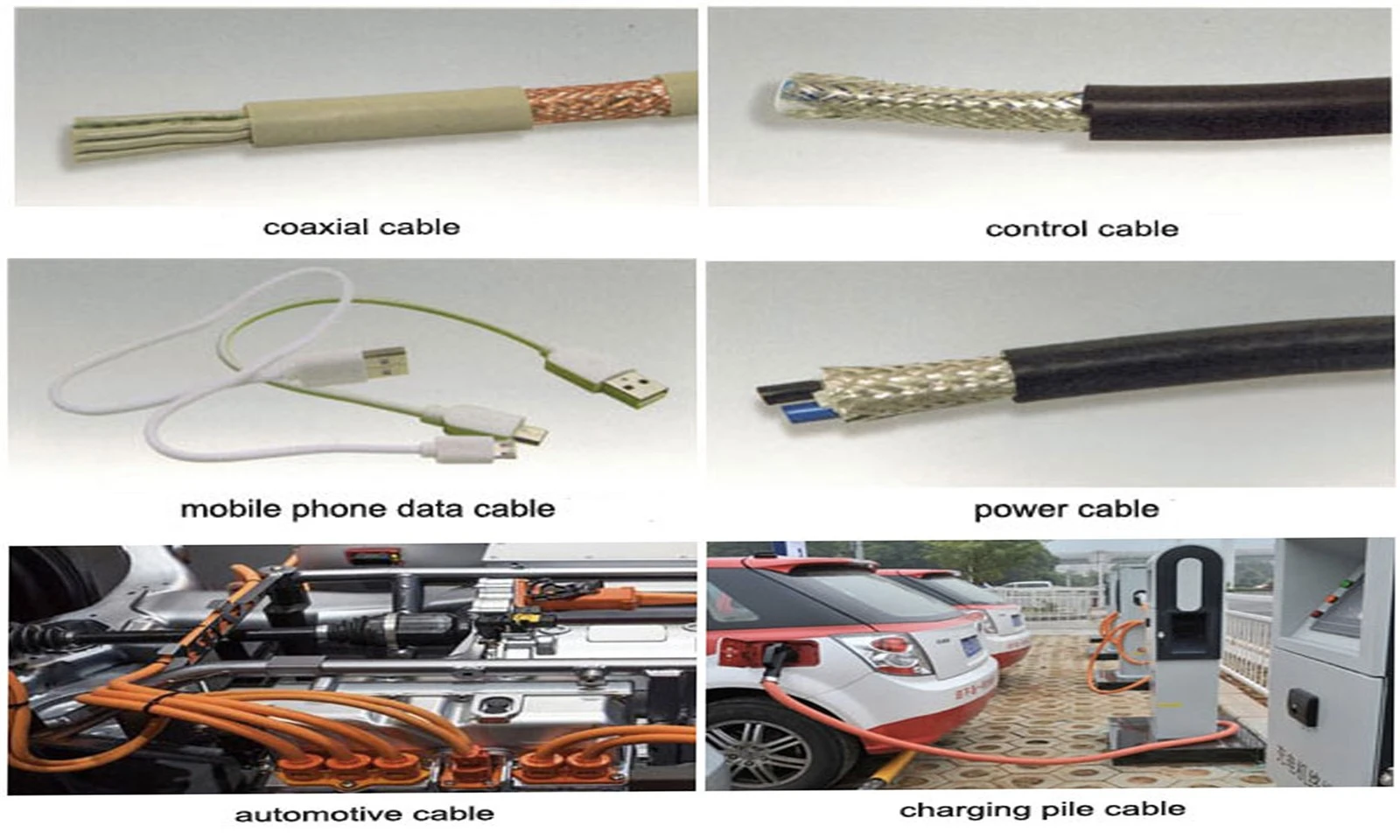

Inner conductor material of Low voltage power cable, communication &signal cable
Parallel double cores line conductor telephone communication
Computer local network, network cable, network line
Braiding wire of signal cable and LV &MV power cable
Medical equipment & connection conductor material
RF cable inner conductor & shielding
Enameled magnet wires
Car locomotive private sidings
Others
