Shenzhen Liying Hardware Building Materials Co., Ltd. is located at the intersection of the roads between the beautiful Futian District of Shenzhen and the Hong Kong Special Administrative Region, with unique location and environmental advantages.
The company was founded in 2020. After years of development, the company has total assets of hundreds of millions of yuan, with import and export trade as the main business, the company strives to become a global supply chain management integrated service provider, has a large number of professionals, involved in six series of products, the main product is metal wire, rope and its extension products manufacturing, annual sales capacity of 400,000 tons.
-
![Hot-rolled Lock]()
Hot-rolled LockHot-rolled lock is generally used as pipe pile accessories for connecting hot-rolled steel sheet piles.The hot rolled C9 lock provided by our company can perfectly connect the hot rolled steel sheet -

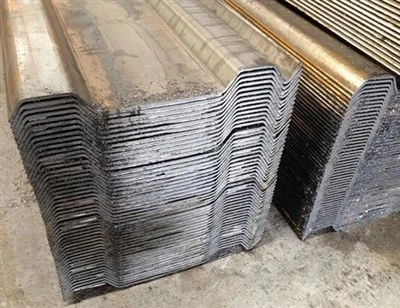

![Trench Sheet Pile]()
Trench Sheet PileTrench sheet pile is also called trench sheet. It is widely used in highway construction projects.Material: Q235B, Q345B, S235, S240, SY295, S355, S430, S460, A690, ASTM A572 Grade 50, ASTM A572 -

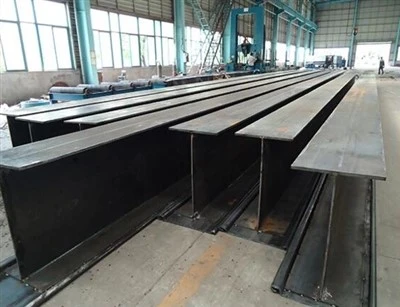

![HZ Composite Steel Sheet Pile]()
HZ Composite Steel Sheet PileHZ composite steel sheet pile is composed of H-shaped steel sheet pile and Z-shaped steel sheet pile, which can provide extremely high cross-section performance in Marine engineering, especially in -
![Cap Cold-formed Steel Sheet Pile]()
Cap Cold-formed Steel Sheet PileFrom the construction situation, the cold-formed steel sheet pile has the advantages of fast construction progress, safety, small space and so on, which is suitable for the emergency engineering -
![OZ Composite Steel Sheet Pile]()
OZ Composite Steel Sheet PileOZ composite steel sheet pile is composed of pipe pile and Z steel sheet pile. It can provide extremely high cross-section performance in Marine engineering, especially in projects requiring -
![Cold-formed Z Steel Sheet Pile]()
Cold-formed Z Steel Sheet PileCold-formed Z steel sheet pile application scope:1, dock wall, maintenance wall, retaining wall2. Construction of shipyards and shipyards3. Isolation noise wall4. Bollard pile, (wharf) mooring -

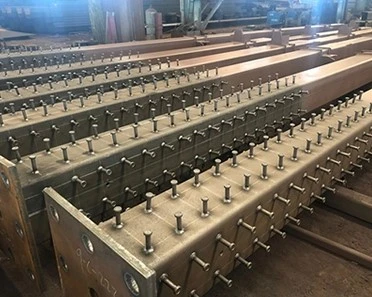

![The Connection Of Steel Pipe Pile]()
The Connection Of Steel Pipe PileThe connection of steel pipe pile is to connect pipe pile with pipe pile, or pipe pile with steel sheet pile through a specific locking device.We can provide all kinds of lock forms, including SLZC9 -
![U Rib]()
-

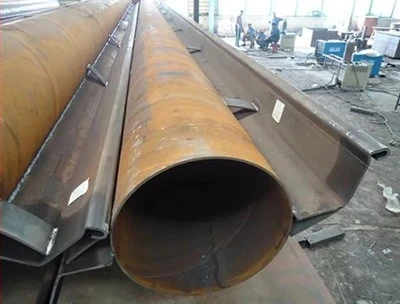

![Prefabricated Buildings]()
Prefabricated BuildingsCompared with traditional cast-in-place buildings, prefabricated buildings can shorten the construction cycle by 25-30%, save water by about 50%, reduce masonry plaster mortar by about 60%, save wood -

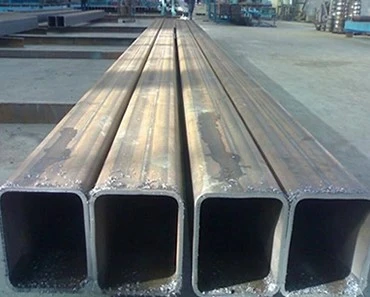

![Tower Tube]()
Tower TubeTower tube is used as the support beam of tower crane, tower tube adopts the square tube of shun Li steel industry, special specifications and models our company can be customized according to -

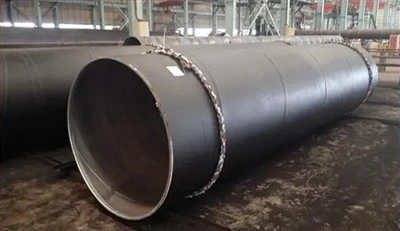

![The Steel Protective Tube (spiral Steel Pipe)]()
The Steel Protective Tube (spiral Steel Pipe)Our company has 3 large spiral submerged arc welding pipe production lines, can produce diameter Φ219 ~ Φ3200 steel pipe (steel casing), annual capacity of 200,000 tons. The steel protective tube -
![Cold-formed U-shaped Steel Sheet Pile]()
Cold-formed U-shaped Steel Sheet PileCold-formed U-shaped steel sheet pile was introduced in the late 20th century. Compared with traditional Larsen steel sheet pile, cold-formed U-shaped steel sheet pile has more advantages.
Why choose us
Quality control
For each process,we have strict inspection standards,and we always insist that quality is life.
One-stop solution
With rich experience and one-to-one service,we can help you choose products and answer technical questions.
Competitive price
We have a professional purchasing team and costing team,trying to reduce costs and profits,and provide you with a good price.
24h online service
You can contact us to inquire about pre-sales, sales, and after-sales services, and we will give you a very satisfactoryWe are at your service online 24 hours a day.
|
SPECIFICATIONS FOR SHEET PILE |
|
|
Size |
● 400*100*10.5mm - 600*210*18mm |
|
●Wall Thickness:10.5-27.6MM |
|
|
●U type sheet pile |
|
|
Standard |
JIS A5523, JIS A5528 |
|
Material |
SY295, SY390, S355 |
|
Location of our factory |
Shandong,China |
|
Usage |
●Earth-retaining wall |
|
●Structure construction |
|
|
●Fence |
|
|
Coating: |
● Bared |
|
Technique |
Hot rolled |
|
Type |
U type sheet pile |
|
Section Shape |
U |
|
Inspection |
Client inspection or inspection by 3rd party. |
|
Delivery |
Container, Bulk Vessel. |
|
About Our Quality |
● No damage, no bent |
Advantages of steel sheet piles
High strength: Steel sheet piles are made of high-strength steel plates, which have excellent tensile and load-bearing capabilities and can withstand large loads and earthquake forces.
Good durability: Steel sheet piles have good corrosion resistance and can be used in harsh environments for a long time, such as sea water, acid-base soil, etc.
Convenient construction: Steel sheet piles can be installed and dismantled quickly through vibration or blowing, and are suitable for temporary or projects that require frequent changes.
Small space occupation: Steel sheet pile is a structure inserted vertically into the ground. It does not occupy the land surface space and is suitable for limited space or dense construction areas.
Strong flexibility: Since the assembly and connection methods of steel sheet piles are flexible and diverse, they can be adjusted and changed according to specific needs to adapt to different design requirements and soil conditions.
Recyclable: Steel sheet piles can be recycled, reducing the consumption of resources and complying with the principle of sustainable development.
Wide range of applications: Steel sheet piles can be used in various civil engineering and construction fields, including foundation treatment, river embankments, coastal protection, retaining walls, infrastructure construction, etc.
River control structures and flood defence: Steel sheet piling has traditionally been used for the support and protection of river banks, lock and sluice construction, and flood protection. Ease of use, length of life, and the ability to be driven through water make piles the obvious choice.
Ports and Harbours: Steel sheet piling is a tried and tested material to construct quay walls speedily and economically. Steel sheet piles can be designed to cater for heavy vertical loads and large bending moments.
Pumping Stations: Historically used as temporary support for the construction of pumping stations, sheet piling can be easily designed as a permanent structure with substantial savings in time and cost. Although pumping stations tend to be rectangular, circular construction is often considered advantageous in this regard.
Bridge abutments: Abutments formed from sheet piles are most cost-effective in situations when a piled foundation is required to support the bridge or where the speed of construction is critical. Sheet piling can act as both foundation and abutment and can be driven in a single operation, requiring minimum space and time for construction.
Road widening retaining walls: Key requirements in road widening include minimised land take and speed of construction, particularly in lane rental situations. Steel sheet piling provides these and eliminates the need for soil excavation and disposal.
Basements: Sheet piling is ideal for constructing basement walls as it requires miimal construction width. Its properties are fully utilised in temporary and permanent cases and offer high cost and programme savings. Sheet piles can also support vertical loads from the structure above.
Underground car parks: One specific form of the basement where steel sheet piling has been found to be particularly effective is for the creation of underground car parks. The fact that steel sheet piles can be driven tight against the boundaries of the site and the wall itself has minimum thickness means that the area available for cars is maximised, and the cost per bay is minimised.
Containment barriers: Sealed sheet piling is an effective means for the containment of contaminated land. A range of proprietary sealants is available to suit particular conditions where extremely low permeability is required.
Load bearing foundations: Steel sheet piling can be combined with special corner profiles to form small diameter closed boxes which are ideally suited for the construction of load-bearing foundations. Developed for use as a support system for motorway sign gantries, the concept has also been used to create foundation piles for bridges.
Temporary works: Steel sheet piling should be the first choice for construction projects requiring a supported excavation. The fundamental properties of strength and ease of use - which steel offers are fully utilised in temporary works. The ability to extract and reuse sheet piles makes them an effective design solution. However, significant cost reductions and programme savings can be achieved by designing the temporary sheet pile structure as permanent works.
Types of Steel Sheet Pile
Z-Type Sheet Piles (NZ Sheet Pile or PZ Sheet Pile)
Z-shaped sheet piles are called Zs because the single piles are shaped roughly like a horizontally stretched Z, with the interlocks located as far away from the neutral axis as possible to ensure good shear transmission and increase the strength-to-weight ratio. Z piles are the most common type of sheet pile in North America.
Flat Web Sheet Piles
Flat sheet piles work differently from others because they are formed in circles and arcs to create gravity cells held together through the tensile strength of the interlock. The tensile strength and the allowable rotation of the lock are the two main design characteristics. The flat sheet pile cells can be made to huge diameters and heights and can withstand a great deal of pressure.
Pan Type Sheet Piles
The pan-shaped, cold-form sheet piles are much smaller than most other sections and are only intended for short, lightly loaded walls. Pan piles are ideal for installation with smaller equipment in locations with limited space and for low walls where speed is required for construction.

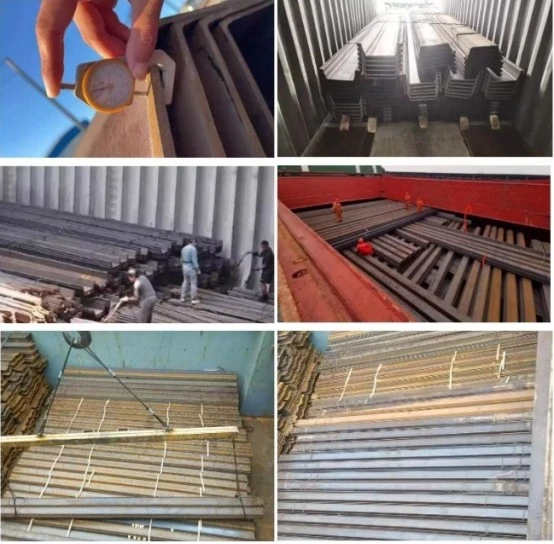

Packaging & Ship
Certification
Our Factory
FAQ
As one of the most professional steel sheet pile manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy cheap steel sheet pile in stock here from our factory. Contact us for quotation.
