![QA Copper Aluminum Enamelled Wire]()
QA Copper Aluminum Enamelled WireThe thermal grade is 130, 155, 180. The main feature is that it has direct weldability, good high frequency resistance, easy staining, good moisture resistance, widely used in all kinds of small and -
![QZY Copper Aluminum Enamelled Wire]()
QZY Copper Aluminum Enamelled WireQZY copper-clad aluminum enamelled wire improves electrical conductivity, thermal conductivity, corrosion resistance, and increased performance. Therefore, the application range is wide. -
![Polyester Imide Copper Aluminum-enamelled Wire]()
Polyester Imide Copper Aluminum-enamelled Wire1. Polyester imide copper coated aluminum enamelled wire is the use of advanced coating welding manufacturing technology, the high quality copper strip is covered in the outer surface of aluminum rod -

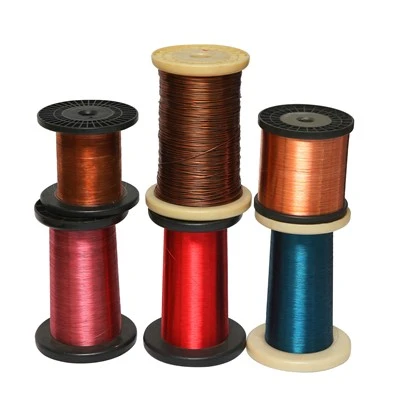

![RoHS Environmental Protection Copper Aluminum Enamelled Wire]()
RoHS Environmental Protection Copper Aluminum Enamelled WireRoHS copper-covered aluminum enamelled wire is suitable for various uses of coils, advanced audio, television deflection circle. Excitation coil, various electronic industrial equipment. Microwave -

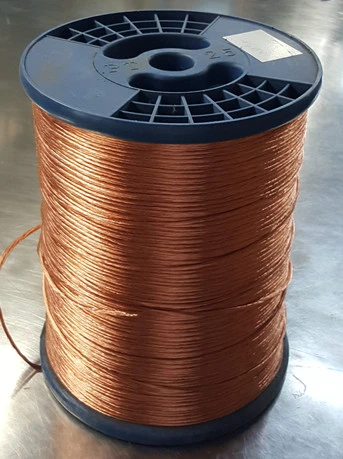

![Multistrand Copper-clad Aluminium Stranded Wire]()
Multistrand Copper-clad Aluminium Stranded WireSupply copper-clad aluminium stranded wireMultiple strands: 2-60 strandsSingle strand size: 0.10mm-1.00mm -

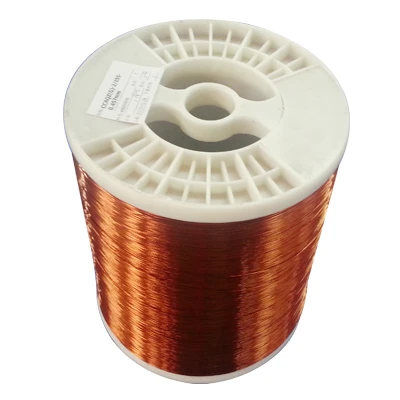

![SV Alcohol Self-adhesive Copper-coated Aluminum Enamelled Wire]()
SV Alcohol Self-adhesive Copper-coated Aluminum Enamelled...Straight solderability, alcohol self-bonding, heat bonding -

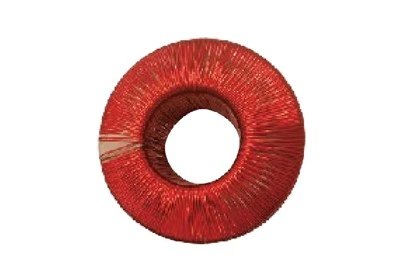

![Flat Wire Enamelled Wire]()
Flat Wire Enamelled WireFlat enamelled wire is a enamelled wire with a rectangular conductor at an R Angle. It is described by the narrow edge value of conductor, wide edge value of conductor, heat resistance grade of paint -
![Enamelled Flat Wire]()
Enamelled Flat WireAdvantages and development trends of enamelled flat wire: 1. Meet the design needs of electronic and motor products with lower height, smaller volume, lighter weight and higher power density, and are -
![Enamel Wire]()
Enamel WireEnameled wire is mainly composed of conductor and insulation layer. The main production process includes annealing the conductor and enameling several time on the surface to get relatively thin -
![Copper Clad Aluminum Wire]()
Copper Clad Aluminum WireCopper Clad Aluminum is an electrical conductor which has an outer sleeve of copper metallurgically bonded to a solid aluminum core. The combination of these two metals make it uniquely suited to -
![Copper Clad Aluminum Alloy Wire]()
Copper Clad Aluminum Alloy WireCopper Clad Aluminum Alloy wire (CCAA) is a kind of bimetallic wire by covering copper on the surface of aluminum alloy rod. CCAA has high tensile strength same as CCAM wire, and high conductivity
Why choose us
Quality control
For each process,we have strict inspection standards,and we always insist that quality is life.
One-stop solution
With rich experience and one-to-one service,we can help you choose products and answer technical questions.
Competitive price
We have a professional purchasing team and costing team,trying to reduce costs and profits,and provide you with a good price.
24h online service
You can contact us to inquire about pre-sales, sales, and after-sales services, and we will give you a very satisfactoryWe are at your service online 24 hours a day.
|
Type of enamelled wire |
High mechanical/ |
Self solderable/ |
General/ |
High mechanical/ |
High Thermal |
High |
High |
Self |
Self |
Self |
High |
Self |
High |
General/ |
Self solderable/ |
Self solderable/ |
Self bonding |
General/ |
General/ |
Self solderable/ |
|
|
SPECIFICATION |
IS : 13730-1/ |
IS : 13730-2/ |
IS : 13730-3/ |
IS : 13730-4/ |
IS : 13730-7/ |
IS : 13730-8/ |
IS : 13730-13/ |
IS : 13730-19/ |
IS : 13730-20/ |
IS : 13730-21/ |
IS : 13730-22/ |
IS : 13730-23/ |
IS : 13730 (Under/ |
IS : 13730-26/ |
IS : 13730-34/ |
IS : 13730-35/ |
IS : 13730-36/ |
IS : 13730-37/ |
IS : 13730-45/ |
IS : 13730-54/ |
IS : 13730-51/ |
|
THERMAL CLASS |
130 (B) |
130 (B) |
155 (F) |
130 (B) |
200 |
180 (H) |
200 (C) |
130 (B) |
155 (F) |
155 (F) |
180 (H) |
180 (H) |
155 (F) |
200 (C) |
130 (B) |
155 (F) |
180 (H) |
180 (H) |
130 (B) |
155 (F) |
180 (H) |
|
Chemical base of base/ Single coat |
Modified |
Polyurethane |
Modified |
Polyurethane |
Polyimide |
Polyesterimide |
Theicpolyester/ |
Polyurethane |
Polyurethane |
Polyurethane |
Polyester/ |
Polyesterimide |
Polyester |
Polyamideimide |
Polyester |
Polyurethane |
Polyesterimide |
Polyesterimide |
Polyester |
Polyester |
Polyurethane |
|
Chemical base of top coat |
Polyvinyl |
Polyamideimide |
Nylon |
Nylon |
Nylon |
Polyvinyl |
Polyvinyl |
Polyvinyl |
|||||||||||||
|
Range of Wire (Diameter) |
5.000-0.500 mm |
2.000-0.050 mm |
5.000-0.050 mm |
2.000-0.050 mm |
5.000-0.020 mm |
5.000-0.050 mm |
5.000-0.050 mm |
2.000-0.050 mm |
0.800-0.050 mm |
1.60-0.050 mm |
5.000-0.050 mm |
1.60-0.050 mm |
1.60-0.254 mm |
1.60-0.071 mm |
5.000-0.050 mm |
0.800-0.050 mm |
1.60-0.050 mm |
1.60-0.050 mm |
5.000-0.050 mm |
5.000-0.050 mm |
1.00-0.050 mm |
|
Insulation Range |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1 & 2 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1b,2b & 3b |
Grade 1b,2b & 3b |
Grade 1b,2b & 3b |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
Grade 1,2 & 3 |
|
Standard colour |
Golden Yellow |
As per |
Light Brown/ |
As per |
Golden Yellow |
Light Brown/ |
Light Brown/ |
As per |
As per |
As per |
Medium Brown to |
Light Brown |
As per |
Light Brown |
Medium Brown |
As per |
Light Brown/ |
Light Brown/ |
Light Brown/ |
Light Brown/ |
As per |
|
UL Listed |
File No. : None |
File No. : None |
File No. : None |
File No. : None |
File No. : None |
File No. : None |
File No. : E174288 |
File No. : E174288 |
File No. : E174288 |
File No. : E174288 |
|||||||||||
|
TECHNICAL PROPERTIES AS PER |
|||||||||||||||||||||
|
Heat shock (°C) |
155 |
155 |
175 |
155 |
240 |
200 |
220 |
155 |
175 |
175 |
200 |
200 |
175 |
220 |
155 |
175 |
200 |
200 |
155 |
175 |
200 |
|
Cut through (°C) |
170 |
170 |
240 |
170 |
400 |
300 |
320 |
170 |
200 |
200 |
265 |
265 |
240 |
350 |
240 |
200 |
265 |
300 |
240 |
240 |
240 |
|
Solderable temperature (°C) |
Not applicable |
375 |
Not applicable |
375 |
Not applicable |
Not applicable |
Not applicable |
375 |
390 |
390 |
Not applicable |
470 |
Not applicable |
Not applicable |
Not applicable |
390 |
470 |
Not applicable |
Not applicable |
Not applicable |
450 |
|
Resistance to Abrasion for 1.00mm |
>11.3 |
>9.3 |
>10.4 |
>9.3 |
>6.6 |
>10.9 |
>11.3 |
>9.3 |
>8.3 |
>9.3 |
>10.9 |
>10.9 |
>10.0 |
>7.05 |
>10.4 |
>8.1 |
>10.9 |
>10.9 |
>10.4 |
>10.4 |
>7.8 |
|
Resistance to refrigerants |
Very good |
Not applicable |
Not applicable |
Not applicable |
Very good |
Good |
Very good |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Very good |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
|
Flexibility & Adherence |
Very good |
Good |
Good |
Good |
Very good |
Good |
Very good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
Good |
|
Bonding Temperature (°C) |
Not applicable |
170/200 depending |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
Not applicable |
170/200 depending |
170/200 depending |
170/200 depending |
Not applicable |
Not applicable |
Not applicable |
Advantage of ENAMELLED COPPER WIRE
Excellent Electrical Conductivity: Copper is highly conductive, making it an ideal material for transmitting electricity efficiently.
Insulation: The enamel coating provides insulation, preventing short circuits and ensuring the safe operation of electrical devices.
High Temperature Resistance: Enameled copper wire can withstand high temperatures without compromising its electrical properties, making it suitable for a wide range of applications.
Thin Insulation Layer: The enamel coating is typically very thin, allowing for compact winding in coils and transformers.
Durability: Enameled copper wire is resistant to abrasion and mechanical damage, ensuring long-term reliability in various operating conditions.
Flexibility: Despite its insulation, enameled copper wire remains flexible, facilitating easy installation and handling in tight spaces.
Corrosion Resistance
Copper is inherently resistant to corrosion, ensuring the longevity of enameled copper wire even in harsh environments.
Cost-Effectiveness
Copper is readily available and relatively inexpensive compared to other conductive materials, making enameled copper wire a cost-effective choice for many applications.
Wide Range of Sizes
Enameled copper wire is available in various sizes and gauges to suit different voltage and current requirements.
Compatibility
Enameled copper wire is compatible with standard soldering techniques, allowing for easy connections in electronic circuits and devices.
Applications of ENAMELLED COPPER WIRE
Electrical Motors
Enamelled copper wire is widely used in the manufacture of electrical motors for various applications, including industrial machinery, automotive systems, household appliances, and HVAC systems.
Transformers
Enamelled copper wire is essential for the windings of transformers used in power distribution, voltage regulation, and electrical equipment.
Generators
Enamelled copper wire is used in the windings of electric generators to produce electricity for power generation and distribution.
Coils and Inductors
Enamelled copper wire is used in coils and inductors for energy storage, filtering, and signal processing in electronic circuits and devices.
Solenoids
Enamelled copper wire is utilized in solenoids for various applications such as valves, actuators, and electromechanical locks.
Communication Equipment
Enamelled copper wire is used in antennas, relays, and communication cables for telecommunication equipment and devices.
Household Appliances
Enamelled copper wire is used in the manufacture of household appliances like refrigerators, air conditioners, washing machines, and fans for motor-driven components.
Renewable Energy Systems
Enamelled copper wire is used in wind turbines, solar panels, and other renewable energy systems for electrical generation and transmission.
Enameled Wire Types
Polyurethane Enamel Type
Polyurethane Enamel Wire with code UEW and UEWF has Thermal Capacity of 120°C, 130°C and 155°C has diameter range from 0.08mm to 1.00mm and can be used in Transformers, Meters, Electronic and Communication Devices.
Polyester Enamel Type
This type of Enamel Wire with code PEW has Thermal Capacity of 155°C. The diameter range is 0.08mm to 1.6mm. Polyester Enamel wire can be used in Motors for Household Application and Appliances.
Polyurethane over coated with polyamide
Self-Bonding Polyurethane Enamel Wire with code SB UEW has Thermal Capacity of 130°C with diameter range from 0.08mm to 1.2mm used in Communication Apparatus and Small Motors.
Polyester overcoated with polyamide
Polyester overcoated with polyamide are coded as PEW-NY and PEWH-NY, has Thermal Capacity of 155°C and 180°C with diameter range from 0.1mm to 1.6mm. This Enamel Wire is used in Small Motors.
Polyester-imide overcoated with polyamide-imide
This type of Enamel Wire with code EIW-AI has Thermal Capacity of 200°C with diameter range from 0.1mm to 1.6mm used in Microwave oven Transformer and Air-con Motors.
Self-Bonding Polyester-imide
Self-Bonding Polyester-imide Enamel Wire with code SB EIW has Thermal Capacity of 180°C. The diameter range is 0.1mm to 0.8mm. Self-Bonding Polyester-imide is used in Magnetic Coils and Deflection York Application.
Self-Bonding Polyurethane
Self-Bonding Polyurethane Enamel Wire with code SB UEW has Thermal Capacity of 130°C with diameter range from 0.08mm to 1.2mm used in Communication Apparatus and Small Motors.
Polyamide-imide
Polyamide-imide Enamel Wire has code AIW. The Thermal Capacity is 220°C with diameter range from 0.1mm to 1.6mm. This Enamel wire is used in Small Motors and Transformers.
Polyester-imide
Polyester-imide Enamel Wire coded as EIW has Thermal Capacity of 180°C with diameter range from 0.1mm to 1mm. This type of enamel wire are used in High Power Motors.
