Product Overview

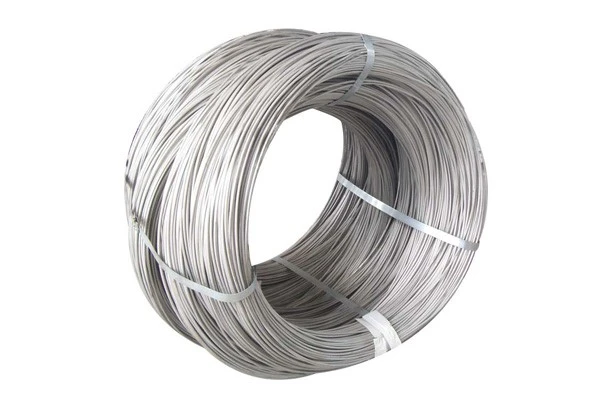

Our Zinc-Aluminum Alloy Coated Steel Wire (also called Zn-10%Al-RE Alloy Coated Wire) combines the strength of high-carbon steel with advanced corrosion protection. Ideal for harsh environments, this wire features a 230–350g/m² zinc-aluminum coating-3–5x more durable than standard galvanized wire-ensuring decades of service life even in coastal or industrial areas.
Key Advantages vs. Ordinary Galvanized Wire:
✔ Longer Lifespan: 50+ years in rural, 25–30 years in coastal/salty air (per ISO 9224 accelerated corrosion tests).
✔ Higher Tensile Strength: 400-1300N/mm² (adjustable to meet ASTM A641, EN 10244-2 standards).
✔ Eco-Friendly: Uses 10% aluminum + rare earth elements to reduce zinc consumption by 15% while enhancing adhesion.
Technical Specifications
|
Parameter |
Details |
Industry Benchmark |
|
Wire Diameter |
1.5mm–6.0mm (±0.04mm tolerance) |
Competitors: ±0.05mm |
|
Coating Weight |
260–350g/m² (customizable up to 400g/m²) |
Standard galvanized: 60–150g/m² |
|
Tensile Strength |
400–1300N/mm² (Q195/Q235B base material) |
ASTM A641 Class 3: ≥550N/mm² |
|
Elongation |
≥12% (for high flexibility) |
EN 10218-2 compliant |
|
Packaging |
50–500kg coils |
Custom palletizing available |
Why Choose Our Zinc-Aluminum Coated Wire?
Superior Corrosion Resistance
Salt Spray Test Results: 5,000+ hours (ISO 9227) without red rust vs. 1,200 hours for standard galvanized wire.
Real-World Case: Used in Dubai's Palm Jumeirah coastal barriers since 2018 – zero corrosion failures reported.
Optimized for Critical Applications
Gabion Baskets: Withstands 2.5x higher abrasion vs. plain galvanized wire (per EN 10223-3).
High-Tension Cables: Fatigue resistance tested to 1M+ cycles (BS 5896).
Customization Options
Alloy Blends: Zn-5%Al (Galfan) or Zn-10%Al-RE for extreme environments.
Post-Coating Treatments: PVC coating (optional) for chemical resistance in pH 3–11 environments.
Applications
1. Infrastructure & Construction
Reinforced Concrete Structures: Prevents rust spalling in bridges/tunnels (complies with AASHTO M111).
Gabion Walls: 20% heavier coating (vs. standard) for rock-filled erosion control.
2. Agriculture & Fencing
Vineyard Trellises: 30-year warranty in humid climates (tested in Florida citrus farms).
Chain Link Fences: UV-resistant coating maintains aesthetics longer.
3. Marine & Industrial
Offshore Cages: Certified for seawater immersion (DNV GL-ST-0377).
Power Transmission: Used by [Example Client] for 500kV grid grounding wires.
Quality Assurance
Raw Materials: Sourced from Baosteel & POSCO mills; traceable mill certificates.
Production Process:
Step 1: Acid pickling (HCl-free, eco-approved).
Step 2: Flux-free hot-dip coating (430°C controlled bath).
Step 3: 100% eddy-current coating thickness inspection.
Certifications: ISO 9001, CE, RoHS, and third-party SGS reports available.
Ordering & Support
MOQ: 10ton (sample coils available).
Lead Time: 25–35 days (20,000-ton annual capacity).
Logistics: FOB Tianjin/CIF global ports
