Railless Metal Sheet Mounting System
Details

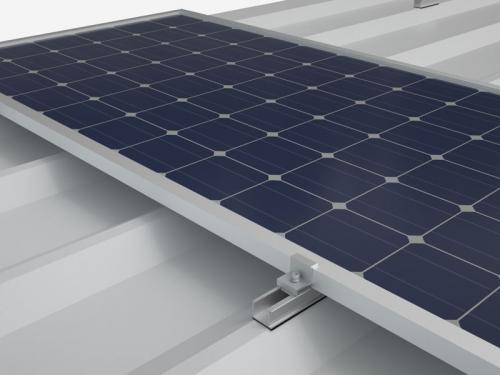

The Railless metal sheet mounting system is light, small , cost-effective and easy to mount on trapezoidal metal sheet, allows for easy logistics. The Rail-free Solar Roof Mounting System facilitates the rapid mounting of framed PV modules on trapezoidal metal sheet roofs with minimum thickness 0.8mm, only four components are required to install the modules directly to the roof. A base mounting clip is 100mm or 140mm long, therefore easy to carry and attach to almost all trapezoidal and sandwich roofs. The EPDM sheet is in the package to seal the screw against the metal sheet.
Category
Solar Panel Mount
Share to
Description

Features

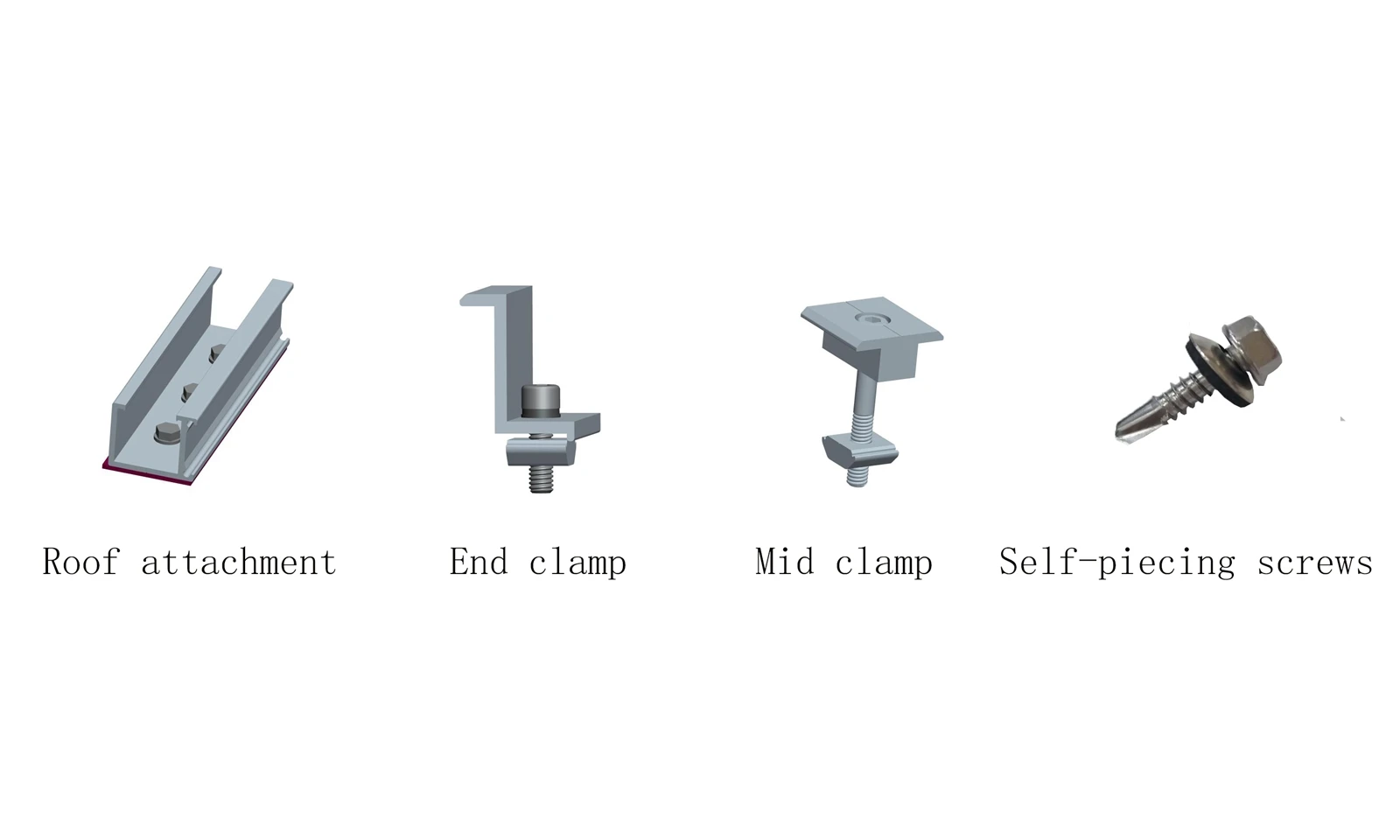

-The system contains only four components.

-Rail-free facilitates the installations and saves time.

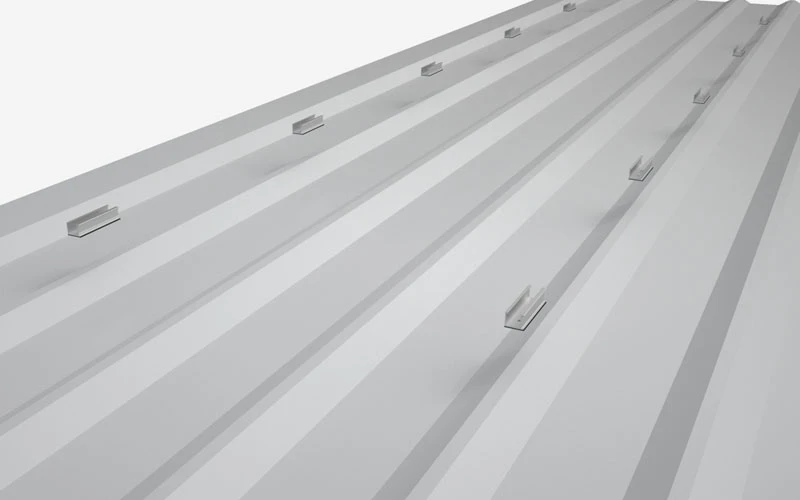

2

- EPDM gaskets under attachments double protection from leaks.

- Attachments mount directly to sheet metal thus eliminating the need for long rails.

- Base mountings clip is 100mm or 140mm long, easy to attach on trapezoidal roofs.

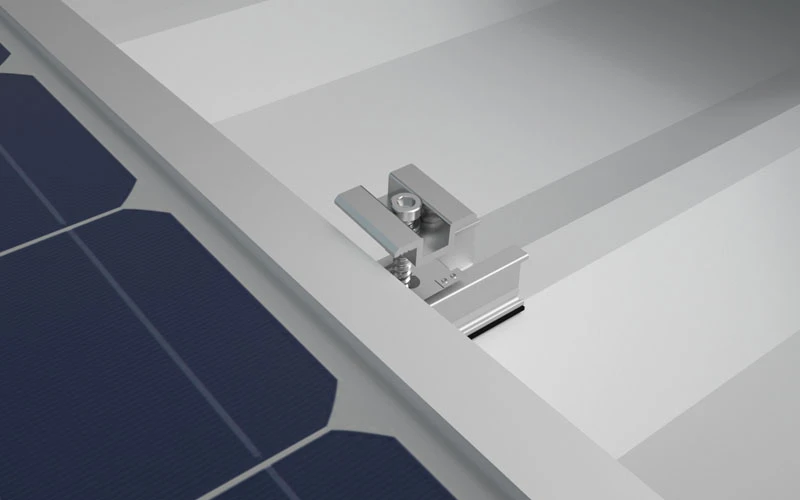

3

4
