Hot-Dip Galvanized Fastener Series
Delivering superior corrosion protection and enduring reliability for demanding environments
Hot-dip galvanizing plays a vital role in product corrosion protection.
In industrial manufacturing, infrastructure construction, marine engineering, and energy sectors, the performance of fasteners directly impacts the safety and service life of entire structures. Our hot-dip galvanized fastener series employs advanced batch hot-dip galvanizing technology to coat carbon steel and alloy steel fasteners with a thick, dense, and self-healing protective layer of pure zinc and zinc-iron alloy. This is not merely a surface coating but a material performance revolution achieved through metallurgical reactions-transforming standard fasteners into high-performance components capable of withstanding salt spray, industrial pollution, high humidity, and chemical corrosion.
Why is hot-dip galvanizing the preferred corrosion protection solution for harsh environments?
Compared to electrogalvanizing (typically with a coating thickness of 5-15μm) or mechanical galvanizing, hot-dip galvanizing produces significantly thicker coatings (usually 40-150μm) and generates a unique zinc-iron alloy diffusion layer. This metallurgical bond layer exhibits far greater hardness than the base steel and possesses cathodic protection properties: even if the coating is scratched to expose the steel substrate, the surrounding zinc corrodes preferentially, continuously shielding the damaged steel. This "sacrificial" mechanism is unmatched by barrier-type protections like paint or powder coatings. For structures with design lifespans of 20-50 years-such as transmission towers, highway guardrails, photovoltaic mounting systems, and offshore platforms-hot-dip galvanizing stands as the ultimate solution. Decades of practical application have proven it to be both high-performance and cost-effective.
Core Technology: In-Depth Analysis of Multi-Layer Coating Structures and Processes
Our hot-dip galvanizing process strictly adheres to international and national standards such as ISO 1461, ASTM A153, and GB/T 13912, ensuring predictable and traceable performance for every batch of products
Three-Layer Composite Coating Structure-A Perfectly Integrated
Precision Coating Solutions for Different Corrosion Grade Environments
Process Advantages: Completely Eliminates Hydrogen Embrittlement and Optimizes Mechanical Properties
Detailed Technical Specifications and Performance Parameters Table
| Parameter Category | Specific Item | Technical Specifications and Scope | Compliance Standards/Test Methods |
| Base Material | Common Steel Grades | Carbon Steel: SWRCH series, 10B21, 35K, 40Cr, 45#; Alloy Steel: SCM435, SCM440 | Original factory material certificates provided |
| Performance Grade (Bolts) | Grade 4.8, Grade 5.8, Grade 6.8, Grade 8.8, Grade 10.9 | ISO 898-1, ASTM A563 | |
| Performance Grade (Nuts) | Grade 4, Grade 5, Grade 6, Grade 8, Grade 10 | ISO 898-2, ASTM A563 | |
| Performance Grade (Gasket) | HV200, HV300, etc | ISO 898-3, ASTM F844 | |
| Coating Characteristics | Process Type | Batch Hot-Dip Galvanizing (HDG) | ISO 1461, ASTM A153 |
| Localized Coating Thickness (Threads) | Standard Grade: ≥45μm; | Heavy Grade: ≥60μm | Magnetic Thickness Measurement Method (ISO 2178) |
| Localized Coating Thickness (Other) | Standard Grade: ≥70μm; Heavy Grade: ≥85/100/120μm | Magnetic Thickness Measurement Method (ISO 2178) | |
| Coating Appearance | Bright silver-gray/grayish white (colorless passivation); Military green/olive green (military green passivation, enhanced weather resistance) | Visual inspection | |
| Coating Adhesion Strength | Chisel Test: Coating peels off in flakes without large areas of bare substrate; Hammer Test: No flaking or peeling | ASTM A123ISO 1461 Annex B | |
| Coating Uniformity | Copper Sulfate Test: Immersion 4 times (60 seconds each), no red copper deposition | ISO 1461 Annex B | |
| Corrosion Resistance | Neutral Salt Spray Test | Standard Grade: ≥600 hours without red rust; Heavy Duty Grade: ≥1000 hours without red rust | ASTM B117 / ISO 9227 |
| Composite Coating Salt Spray Test | Galvanized + Sealer: ≥2000-3000 hours | Customized as required | |
| Estimated Service Life | C3 Environment: >30 years; C4 Environment: 15-25 years; C5 Environment: 5-15 years (heavy coating) | ISO 9224 Corrosion Classification | |
| Dimensions and Threads | Post-Plating Thread Treatment | Tapping/Reaming: Remove excess zinc nodules from thread surfaces to ensure free nut engagement | Complies with ISO 965 6H/6g fit tolerances |
| Lubrication Treatment | Oil/Wax Application: Reduces the coefficient of friction and ensures stable torque-to-axial force conversion | / | |
| Packaging and Delivery | Standard Packaging | High-strength woven bags, export-grade fumigation-free wooden pallets, heavy-duty iron drums (upon request) | Moisture-proof, mechanical damage-proof |
| Quality Documentation | Batch-traceable Material Test Certificate (MTC), Plating Inspection Report, Salt Spray Test Report (third-party optional) | 100% provided with shipment |
Professional Application Fields and Selection Solutions
Power Transmission and Telecommunications Infrastructure
Anchor bolts, tower foot bolts, and connecting assemblies for transmission towers, substation structures, and telecommunications base station antennas must withstand once-in-a-century wind loads and prolonged atmospheric corrosion. Our supplied 8.8/10.9 grade hot-dip galvanized high-strength bolt connection sets, with a coating thickness ≥70μm, strictly comply with GB/T 18230 or DIN 7998 standards. They have been successfully applied in multiple ±800kV ultra-high voltage projects and 5G base station construction projects, maintaining a 30-year record of zero corrosion failures.
Highway, Bridge, and Municipal Guardrails
To withstand multiple corrosive agents including vehicle exhaust, deicing salts, and acid rain, we provide matching anti-theft bolts, splicing bolts, and anchor bolts for corrugated beam guardrails and bridge steel guardrails. Products are certified to JT/T 722 (Steel Structures for Highway Bridges) and GB/T 18226 (Corrosion Protection for Steel Structures in Highway Traffic Engineering), with salt spray test requirements exceeding general standards by 30% to ensure guardrail systems match road design lifespans.
Marine Engineering, Port Machinery & Shipbuilding
For the ultimate challenge of C5-M marine high-salt-fog environments, we recommend a dual-protection solution: thickened galvanization (≥85μm) + sealing coating. Our products are extensively applied in critical components such as container terminal gantry cranes, gantry crane rail clamps, mooring bollards, and offshore wind platform ladders. Simulated aging tests per ISO 20340 (Performance Requirements for Anti-Corrosion Coatings for Marine Structures and Related Structures) demonstrate that the composite coating system extends service life by over 200% compared to single galvanizing.

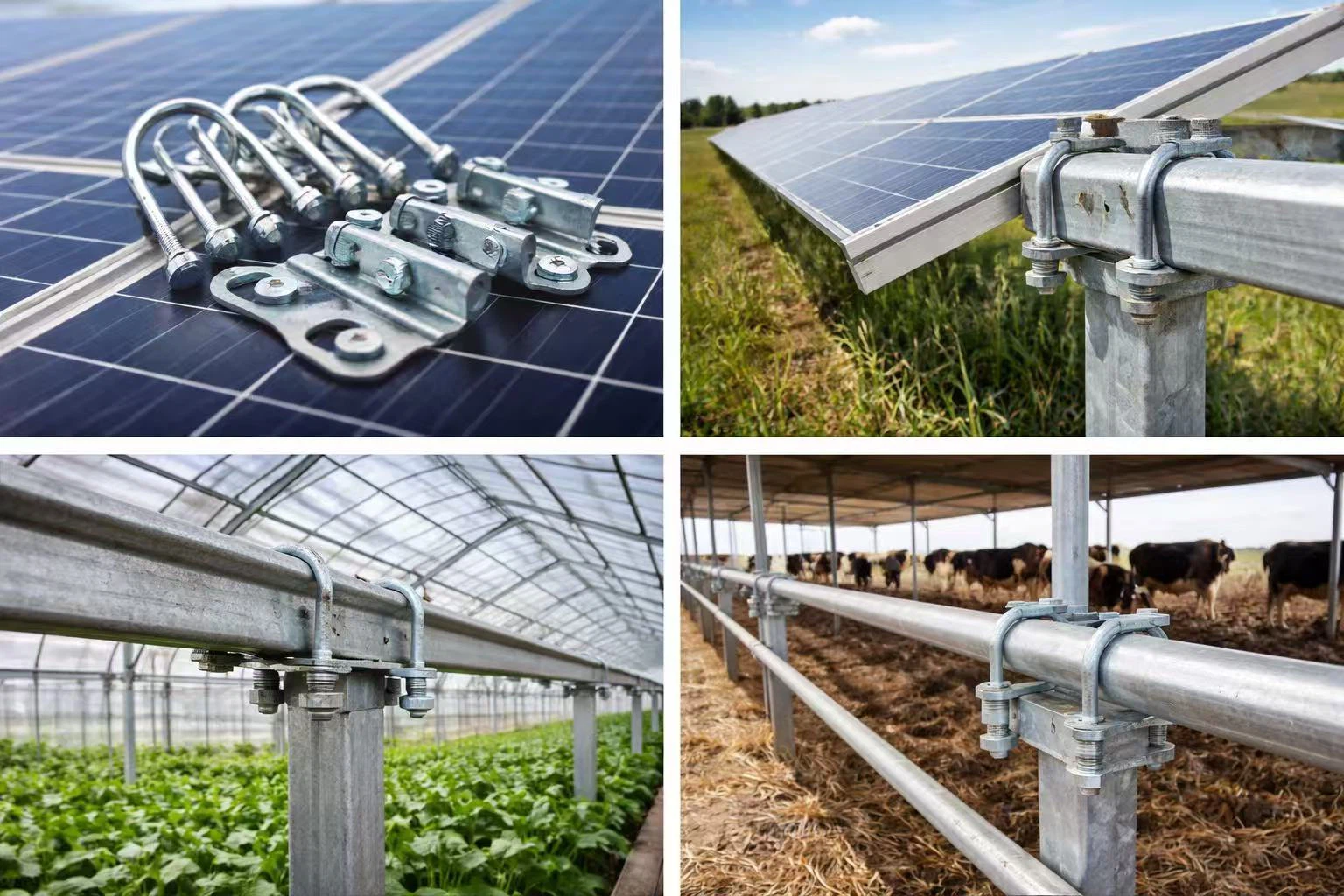

Photovoltaic Solar & Agricultural Facilities
For PV power plants seeking optimal 25-year lifecycle costs, we provide pre-galvanized + hot-dip galvanized dual-process U-bolts and connecting nuts specifically for photovoltaic racking systems. Uniform coating thickness prevents thread seizure due to coating buildup during frequent temperature fluctuations. Simultaneously, we provide cost-effective Grade 6.8 standard galvanized fasteners for agricultural greenhouses and livestock fencing, balancing corrosion resistance with economic efficiency.
