Gabion Mesh

Innovative Solutions for Modern Engineering Protection and Landscape Construction

Introduction

Gabion mesh is an innovative flexible retaining structure manufactured from high-strength steel wire through precision welding or double-twisted weaving techniques. This structure combines the stability of engineering mechanics with the adaptability of ecological design, demonstrating exceptional performance in civil engineering, hydraulic construction, and environmental landscaping. As a professional gabion mesh manufacturer, we employ advanced production technologies and a rigorous quality control system to provide durable protective solutions for global engineering projects.

Core Technical Features of the Product

Characteristics

Structural Advantages

Our gabion baskets are manufactured from premium low-carbon steel wire, formed into a three-dimensional mesh structure through a specialized double-twist weaving process. Each twist point undergoes precise calculation to ensure uniform and stable mesh dimensions. Tested to EN 10223-3 standards, mesh diagonal deviation is controlled within ±3%, with structural deformation rate below 2%. This design enables the gabion system to withstand significant foundation settlement and hydraulic impact, demonstrating 40% higher impact resistance than traditional concrete structures in simulated flood testing.

Durability Assurance

All wires feature Galfan coating technology (zinc-5% aluminum-rare earth alloy blend) with a coating weight of 200-300g/m². Laboratory accelerated corrosion tests demonstrate the product maintains full protective functionality for over 2000 hours in salt spray environments. For specialized corrosive conditions, we offer PVC-coated protective layers up to 1.2mm thick, ensuring long-term performance in pH 4-10 acidic/alkaline environments. Field engineering tracking data confirms our gabion mesh achieves an expected service life exceeding 60 years in seawater environments.

Ecological Compatibility

Gabion structures inherently possess permeability and vegetative compatibility, with porosity reaching 30%-40%, effectively promoting natural drainage and plant root growth. The natural stone fill provides an ideal habitat for aquatic organisms, aiding in the restoration of biodiversity within aquatic ecosystems. In landscape engineering applications, the gabion surfaces can be planted with climbing vegetation, allowing the structures to integrate seamlessly with the natural environment within 6-12 months. This achieves a perfect combination of engineering functionality and ecological value.

DETAILED TECHNICAL SPECIFICATIONS

Parameter Category	Technical Specifications	Testing Standards	Performance Characteristics
Structural Specifications
Mesh Type	Twisted Hexagonal Mesh/Welded Rectangular Mesh	EN 10223-3	Standard Optional
Mesh Size	60×80mm to 150×180mm	ASTM A975	Multiple Specifications
Wire diameter range	2.0mm–6.0mm (after plastic coating)	ISO 9443	Strength options available
Material Properties
Wire Material	Low-carbon steel/Galvanized steel/PVC-coated	GB/T 700	Grade options available
Tensile Strength	350-550 MPa	ASTM A370	High Strength
Elongation	≥10% (at break)	ASTM A370	Good toughness
Coating Weight	Galfan 200-300 g/m²	ASTM A90	High Corrosion Resistance
Engineering Performance
Permeability Coefficient	≥1×10⁻² cm/s	ASTM D2434	Excellent permeability
Compressive Strength	≥3.5MPa after compaction	GB/T 50081	Structural stability
Service Life	Marine environment >50 years	Accelerated aging test	Exceptional durability
Packaging and Transportation
Packaging Type	Compressed Bundles/Rolls	Corporate Standard	Space-saving
Unit Weight	500-800kg/unit	/	Easy to handle
Protective Packaging	Rust-proof paper + Waterproof cloth	/	Dual protection

Advantages in Professional Engineering Applications

In river channel management projects, the flexible nature of gabion mesh adapts to uneven riverbed settlement. Monitoring data shows that after enduring five flood scouring events, the structural integrity retention rate of our products in bank protection projects exceeds 95%, while traditional rigid structures require repairs at a 30% rate. Their permeable properties reduce hydrostatic pressure by up to 40%, significantly enhancing slope stability.

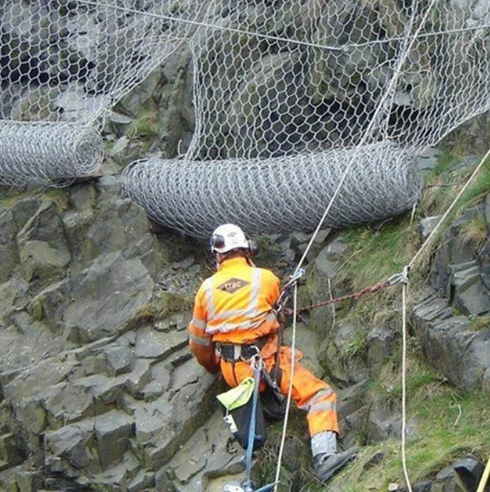

For highway slope protection, our products demonstrate exceptional adaptability. The double-twisted structure evenly distributes localized loads across the entire system, achieving a slip resistance coefficient exceeding 1.5. The unique vegetation-friendly design enables slope vegetation coverage to reach 80% within 12 months post-construction, effectively controlling soil erosion while substantially reducing maintenance costs.

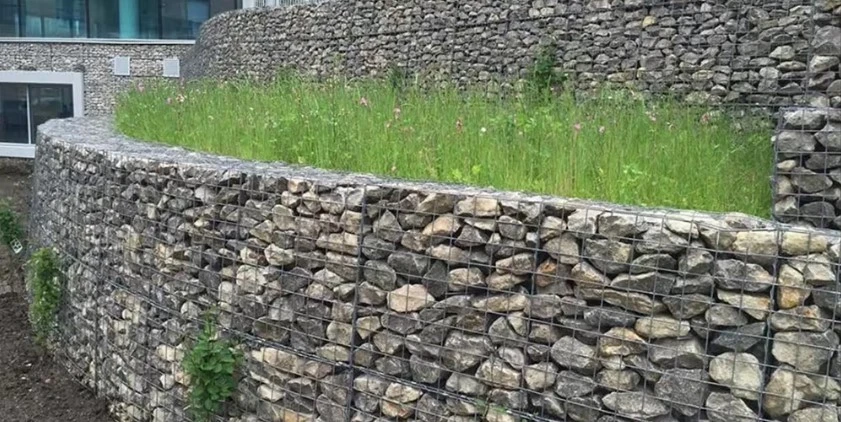

In landscape engineering, the modular design of gabions unlocks boundless creative possibilities. Standard dimensions include 2×1×1m and 3×1×1m, with custom shapes available to meet specific design requirements. Filling materials can utilize local natural stone, imparting unique regional character to each project and achieving a harmonious blend of functionality and aesthetics.

Quality Control and Certification System

Providing you with reliable assurance

why choose our products

We have established a comprehensive quality traceability system covering the entire process from raw materials to finished products. All steel wire raw materials are sourced from ISO 9001-certified steel mills, with each batch accompanied by complete material certificates. Thirty-two quality control points are implemented during production, including online monitoring of coating thickness and sampling inspections of mesh dimensions. Final products undergo third-party testing by SGS, fully complying with international standards such as JIS G3532, ASTM A975, BS EN 10223-3, and GB/T 343.

Our laboratory is equipped with advanced testing equipment capable of conducting comprehensive performance evaluations, including fatigue testing, salt spray corrosion testing, and tensile testing. Each batch of shipped products is accompanied by a bilingual quality certificate detailing all technical parameters and test results, providing authoritative documentation for project acceptance.

Packaging Logistics and Technical Support

Advanced packaging system

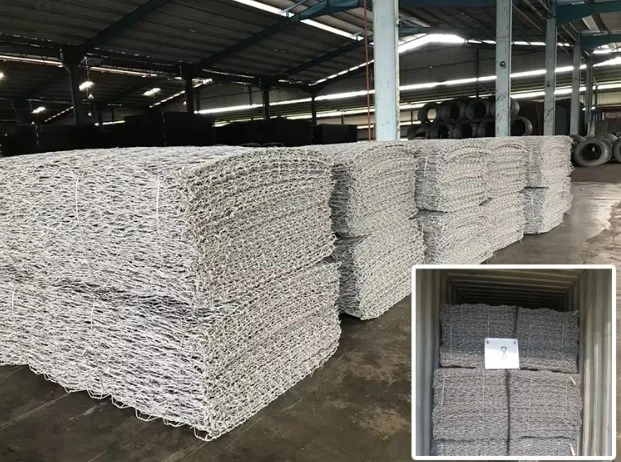

We employ a fully automated hydraulic compression packaging system that reduces gabion mesh volume to 30% of its original size, significantly lowering ocean freight costs. Standard packaging features triple-layer protection: rust-proof paper lining, plastic film interlayer, and waterproof woven fabric outer cover, ensuring products remain intact during ocean voyages lasting up to 60 days. Through ERP system management, we guarantee shipment arrangements to major global ports within 15 business days of order receipt.

Professional technical team

Our engineering and technical team provides comprehensive support services, including optimization of engineering design solutions, construction technical guidance, and on-site installation training. We have established a technical database containing over 200 successful case studies, offering reliable references for new projects. Request product samples and technical manuals today-our experts will tailor the optimal solution for your specific needs.

Why Choose Our Gabion Mesh Products?

Among numerous suppliers, we strive to be your most reliable partner for the following reasons:

Quality is our foundation, backed by data:

We exclusively use high-carbon steel wire meeting international standards and provide independent material inspection reports. Every coil of wire and every weld point undergoes rigorous quality control, ensuring the strength, coating thickness, and durability of our delivered products exceed standard requirements.

Technical Expertise, Custom Solutions:

We go beyond product sales to deliver comprehensive solutions. Our team of experienced engineers recommends optimal combinations of mesh size, wire diameter, coating thickness, and basket dimensions based on your project drawings, soil conditions, and hydrological data.

Production Capacity & Delivery Assurance:

Equipped with advanced fully automated production lines, we maintain a monthly capacity exceeding 500,000 square meters. This enables us to reliably meet bulk demands for large-scale projects while efficiently handling urgent orders.

Global Service Experience:

Our products have been successfully deployed in thousands of projects across over 30 countries and regions worldwide, from highway slopes to municipal river rehabilitation, accumulating invaluable experience across diverse climates and geological conditions.

Exceptional Value Proposition:

Through large-scale procurement, lean manufacturing, and optimized logistics, we deliver market-leading competitive pricing while maintaining premium quality, maximizing your project's cost-effectiveness.
