Gabion baskets

The Ultimate Solution for Slope Protection, Retaining Walls, and River Management

Product Definition

Gabion baskets are robust mesh-cage structures welded or woven from high-strength, corrosion-resistant steel wire. By precisely interweaving multiple wires into a mesh, they form containers with outstanding flexibility and load-bearing capacity, which are then filled with stones or other aggregates. With their exceptional strength, durability, and ecological aesthetics, gabion baskets have become fundamental components in civil engineering and landscape design worldwide. Key applications include: slope stabilization and erosion control, riverbank and shoreline protection, gravity retaining walls, highway and railway abutment slope protection, drainage channel lining, as well as landscape walls and decorative features.

Outstanding Engineering Advantages and Project Benefits

Why do engineers, contractors, and landscape designers consistently choose gabion baskets? The answer lies in their unique blend of performance and practicality.

Exceptional Structural Integrity and Flexibility: Each basket is constructed from steel wire with a minimum tensile strength of 340–500 MPa (compliant with ASTM A975 standards), ensuring it can withstand immense earth pressure and hydraulic loads. Unlike rigid concrete structures, gabions possess flexibility. They can settle and shift without fracturing, making them ideal for unstable foundations or areas prone to minor subsidence. When interconnected and filled, they form a unified, gravity-reliant structure with exceptional stability.

Superior Drainage and Erosion Control: The permeability of gabion mesh is its key hydraulic advantage. It allows water to drain freely, effectively eliminating hydrostatic pressure buildup behind the structure-a common cause of solid wall failure. This permeability also reduces flow velocity and kinetic energy, minimizing scouring and erosion at the base and surrounding areas. According to a 2021 study in the International Journal of Civil Engineering, gabion structures can reduce surface runoff velocity by up to 40% compared to impermeable alternatives.

Ecological Sustainability and Aesthetics: Gabions promote environmental sustainability. They utilize locally sourced stone fill, reducing the carbon footprint associated with material transportation. The voids within the cages allow soil and vegetation to grow naturally over time, achieving eco-engineering integration and enhancing habitats. This "green" characteristic helps structures blend seamlessly into natural surroundings.

Cost-Efficiency and Rapid Installation: Significant cost savings are achieved through reduced labor and construction time. Gabions arrive on-site in flat bundles or partially assembled. A three-person crew can install over 100 square meters of gabion walls daily on average, exceeding the construction speed of traditional masonry or concrete retaining walls by more than threefold. This directly translates to lower labor costs and shorter project timelines.

Exceptional Longevity and Minimal Maintenance: Our gabion baskets feature corrosion protection through Galfan® coating (zinc-5% aluminum-rare earth alloy blend) or PVC/PE plastic coating. Per ISO 9227 salt spray testing, Galfan coating offers 2-3 times the corrosion resistance of conventional hot-dip galvanizing, with an expected service life exceeding 50-100 years in standard environments. Structures require minimal maintenance, and the filled stone further consolidates over time, actually increasing structural strength.

Detailed Technical Specifications and Parameters

We offer a full range of standard and custom gabion products to meet diverse project requirements.

Parameter Item	Specification/Range	Implementation Standard	Notes and Application Recommendations
Mesh size	60x80mm, 80x100mm, 100x120mm, 120x150mm	EN 10223-3, ASTM A975, GB/T 343	Select based on aggregate size; aggregate particle size should be at least 1.5 times larger than the mesh size.
Wire diameter	Edge wire: 2.5mm - 4.0mm; Mesh wire: 2.0mm - 3.2mm	EN 10223-3, ASTM A975, GB/T 343	Edge wire diameter is typically larger than mesh wire to enhance edge strength.
Tensile strength	≥ 350 MPa (standard), up to 500 MPa	ASTM A975	High strength ensures the cage remains undistorted and intact during filling and compression.
Metal Coatings	Hot-dip galvanizing (zinc coating ≥245 g/m²), Galfan® (zinc-aluminum coating ≥200 g/m²)	ISO 1461, ASTM A975	Galfan® coating provides optimal corrosion protection, suitable for coastal and highly corrosive environments.
Polymer Coating	PVC or PE plastic coating, thickness 0.5mm - 1.0mm	/	Provides additional physical protection and color options (green, gray, etc.) for landscaping projects.

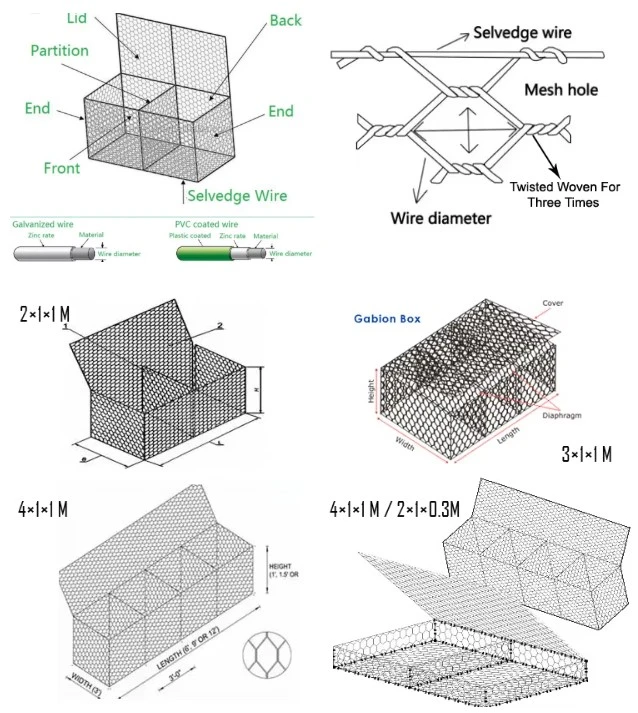

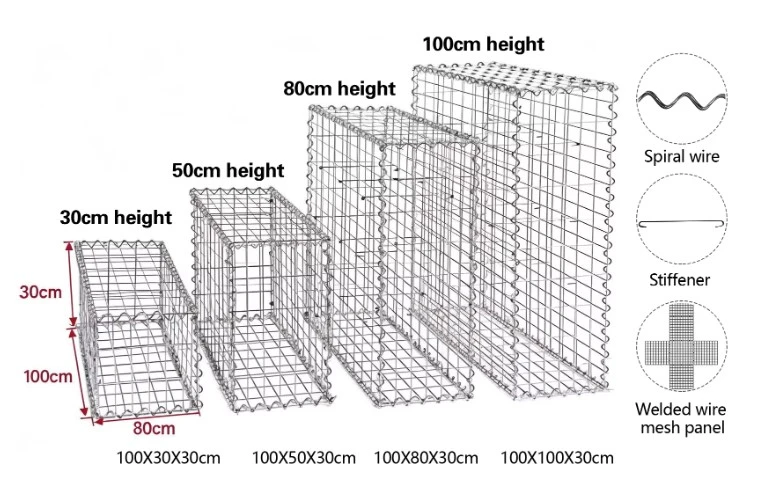

Cage Dimensions (LxWxH)	Common: 2x1x1m, 3x1x1m, 4x1x1m, 2x1x0.5m	Customizable	Standard sizes facilitate design and construction. Partitions (dividers) are typically installed at one-meter intervals to enhance internal stability.
Packaging Method	Folded bundles, each weighing approximately 500-800 kilograms	/	Significantly reduces shipping and storage space requirements, lowering logistics costs.

We can provide the dimensions you require, and we will custom-produce additional sizes for you. We operate multiple production lines to ensure timely delivery. Regarding quality, you can rest assured-our professional inspection team and technical staff guarantee that every product meets your specified standards with high precision.

Our production system is certified to ISO 9001:2015 quality management standards. Products strictly comply with international standards including JIS G3537 (Japan), KS D3552 (Korea), ASTM A975 (USA), BS EN 10223-3 (UK/EU), and GB/T 343 (China National Standard), ensuring consistent quality for global projects.

Why choose our gabion baskets?

Among numerous suppliers, we are committed to becoming your most reliable long-term partner for the following reasons:

Quality-centric, data-driven verification

We never compromise on material quality. We provide traceable mill certificates and independent third-party inspection reports to ensure that the strength, coating weight, and durability of every coil of wire precisely meet or exceed the standards you ordered.

Professional Engineering Support and Customization Capabilities

We don't just sell products-we deliver solutions. Our technical team provides complimentary analysis and selection recommendations for your project drawings, soil reports, and hydrological data. We efficiently manufacture non-standard dimensions, specialized mesh patterns, or irregular structures (such as curved or stepped designs) to meet complex design requirements.

Mass Production and Stable Delivery

We operate advanced fully automated production lines with a monthly capacity exceeding 800,000 square meters. This enables us to ensure stable supply for the large-scale volumes required by major infrastructure projects and government initiatives, while strictly adhering to delivery schedule commitments.

Global Project Experience Validation

Our products have been successfully deployed in thousands of critical projects across more than 40 countries worldwide, including highway slope protection, river channel rehabilitation, port revetments, and commercial landscaping projects. This extensive deployment has provided invaluable practical experience in addressing diverse complex geological and climatic conditions.

Highly Competitive Total Value

Through direct sourcing, lean manufacturing, and an optimized global logistics network, we deliver top-tier quality while offering the most attractive pricing in the market, achieving optimal project lifecycle costs.

Choosing us means choosing a partner driven by technology, grounded in quality, and focused on your success. We look forward to working with you to build a solid, beautiful, and enduring foundation for your next project.
