Welded Wire Farm Gate

Providing a Durable Access Solution for Modern Agriculture and Livestock Operations

The Convenience of Welded Wire Farm Gates

Welded wire mesh farm gates serve as indispensable critical infrastructure for modern farms, ranches, and agricultural facilities. They function not only as physical barriers for zoning areas and managing livestock movement but also as the first line of defense for safeguarding property security and operational efficiency. Compared to traditional solid gates or simple fence doors, welded mesh farm gates achieve a perfect balance of strength, security, visibility, and durability through scientific engineering design and precision manufacturing. As a professional agricultural facility manufacturer, we deeply understand the stringent demands of various farming and ranching scenarios-from withstanding cattle charges and resisting extreme weather erosion to meeting the convenience requirements of frequent opening and closing.

Why is a professional farm gate a worthwhile long-term investment?

A high-quality farm gate can easily last 15 to 20 years or more. Throughout its service life, it will endure tens of thousands of openings and closings, constant leaning and gnawing by livestock, occasional scrapes from farm machinery, and relentless exposure to sun and rain. Opting for gates made from low-grade materials or crude craftsmanship may save costs initially, but subsequent issues like warping, rusting, hinge failure, or welded mesh separation will lead to frequent repairs, potential safety hazards, and costly replacements. Therefore, investing in a professional gate constructed from high-strength materials, treated for corrosion resistance, and featuring a robust frame is a wise decision to ensure your farm's long-term efficient and safe operation.

Core Product Features and Technical Deep Dive

1.High-Strength Modular Welded Wire Mesh Structure

The core of our farm gates lies in their welded mesh panels. The mesh wires are made from premium low-carbon steel, typically with diameters ranging from 4.0mm to 6.0mm. These wires are precision resistance-welded into standard rectangular mesh patterns of 50mm x 100mm, 50mm x 150mm, or 75mm x 150mm. Each weld point is optimized for current and pressure, ensuring shear strength of no less than 70% of the wire's inherent strength. This construction prevents small to medium livestock (such as sheep and pigs) from passing through with their heads or legs while maintaining excellent visual transparency for easy monitoring of conditions inside and outside the gate. A single standard-sized welded mesh panel (e.g., 1.2m x 2.4m) can withstand over 250 kilograms of static load at its center point without permanent plastic deformation.

2. Sturdy Frame and Reinforced Design

The welded mesh is embedded within a robust rectangular tubular frame, primarily constructed from hot-dip galvanized square tubing measuring 40mm x 60mm x 2.0mm or 50mm x 50mm x 2.5mm. To withstand impacts from large livestock (such as cattle and horses) and stresses from prolonged use, critical areas are reinforced:

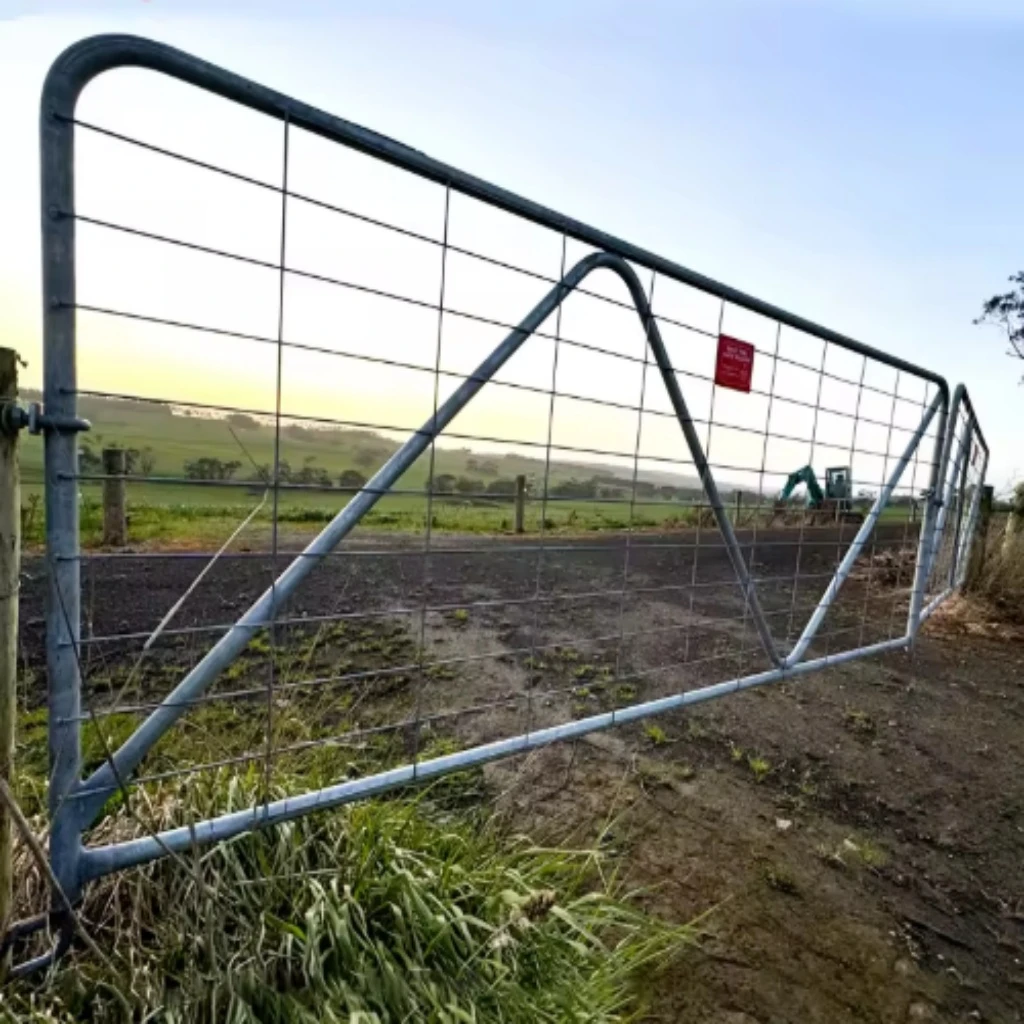

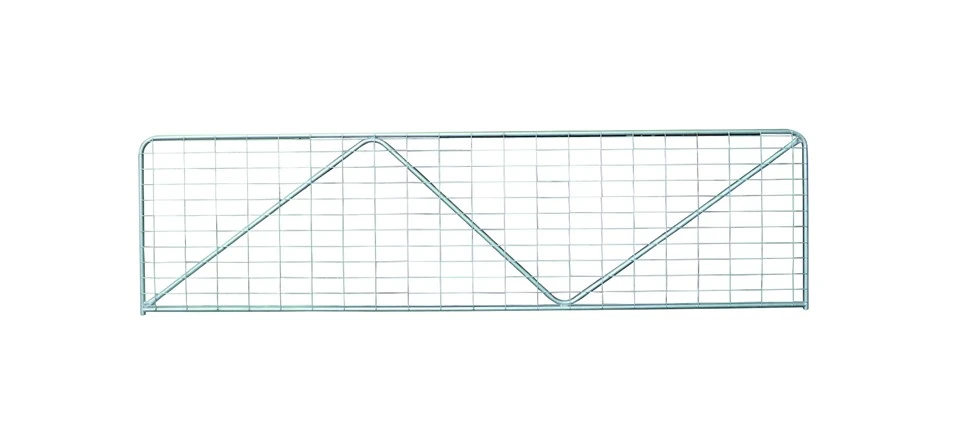

Diagonal Braces: One or two diagonal tension reinforcements are welded inside the gate, transforming the rectangular frame into a stable triangular structure. This effectively prevents diamond-shaped distortion caused by stress.

Mid-section crossbar: For gates exceeding 2 meters in width, an additional horizontal crossbar is typically added at the midpoint of the gate height. This further enhances overall rigidity and prevents the mesh panel from bulging due to wind pressure or animal pressure.
The clearance between the door frame and door panel is precisely calculated (typically 10-15mm). This ensures smooth opening and closing even with minor deformation or sand accumulation, while preventing excessive gaps.

3. Long-lasting Anti-corrosion Surface Treatment

Farm gates endure prolonged outdoor exposure, making anti-corrosion treatment crucial for their longevity. We offer three mainstream solutions:

Full Hot-Dip Galvanizing: All metal components (mesh, frame, fittings) undergo hot-dip galvanizing after welding. The average zinc layer thickness is no less than 85μm (approximately 600g/m²), ensuring thorough protection even at cut edges and weld points. According to ISO 9227 standards, this coating provides an estimated service life exceeding 20 years in rural atmospheric environments.

Powder Coating: An outdoor-grade polyester powder coating approximately 60-80μm thick is applied over the galvanized substrate. This provides an additional physical and chemical barrier while offering a wide selection of RAL standard colors (e.g., dark green, RAL 7016) to harmonize the gate with farm buildings and surroundings, enhancing aesthetics.

High-Zinc Spray Coating: As a cost-effective alternative, a zinc-rich primer combined with a topcoat provides reliable protection through spray application.

4. Secure and Reliable Locking and Hinge Systems

An easy-to-operate, robust opening/closing system is essential. Our standard configuration includes:

Heavy-Duty Gravity Drop Bolt: Crafted from 16mm diameter round steel, this bolt locks via gravity and can be operated with one hand, even while wearing gloves. Its latch design features anti-lift functionality to prevent livestock from prying it open with their noses from the outside.

Adjustable Heavy-Duty Hinges: Utilizing heavy-duty hinges with bronze bushings, the pivot diameter is typically 16mm or larger. Some models feature vertically adjustable bolts to compensate for minor post settlement over time, ensuring the gate remains vertical and operates smoothly long-term.

Optional accessories: Includes safety chains, padlock hasps, and remote pull-cord opening devices for tractor operation, allowing direct gate control from the cab.

Detailed Technical Specifications Table

Parameter Category	Specific Item	Standard Specifications and Optional Range	Description/Test Basis
Door Core	Standard Door Width x Height	1.2m x 1.2m to 4.8m x 2.4m	Fully customizable
	Welded mesh wire diameter	4.0 mm, 5.0 mm, 6.0 mm	Low-carbon steel wire (Q195/Q235)
	Welded Mesh Aperture Sizes	50mm x 100mm, 50mm x 150mm, 75mm x 150mm	Rectangular apertures, secure welded joints
	Frame Main Material	40x60x2.0mm, 50x50x2.5mm Square Tubing	Upgradable based on load requirements
Structural Reinforcement	Internal Braces	Standard (Single/Double Diagonal)	Prevents Diamond-Shaped Frame Deformation
	Center crossbar	Standard for door width ≥2.0m	Enhanced torsional rigidity
Surface Treatment	Corrosion Protection Options	1. Full hot-dip galvanizing (≥85μm) 2. Galvanizing + powder coating 3. High-zinc primer spraying	Option 1 offers the longest service life
Hardware Systems	Hinge Types	Heavy-duty bushed hinges, pivot ≥16mm	Some models adjustable
	Standard Door Lock	Gravity Drop Bolt Lock, Bolt Diameter 16mm	Anti-Lifting Design
Performance Specifications	Horizontal Thrust Resistance	≥ 1.0 kN/m (based on standard specifications)	Simulated Livestock Impact
	Start life cycle testing	≥ 20,000 cycles of trouble-free operation	Simulate long-term usage

Professional Application Scenarios and Customized Solutions

Dairy and Beef Cattle Barn Access Gates

Given the high traffic volume and potential for crowding among cattle, we recommend reinforced gates featuring 6.0mm diameter wire mesh, a 50x50x2.5mm square tube frame, and dual diagonal braces. For locking mechanisms, we advise heavy-duty gravity latches supplemented with an additional safety chain. Experience demonstrates this configuration effectively withstands accidental impacts from adult cattle and accommodates frequent tractor passage.

Stable and Breeding Farm Fence Gates

Horses are naturally sensitive and may chew on gates. In this context, beyond robust construction, a smooth surface finish is particularly crucial. We recommend the "galvanized + powder-coated" solution, which provides excellent protection while its smooth surface prevents injury to horses. Additionally, all edges and corners undergo grinding to eliminate burrs.

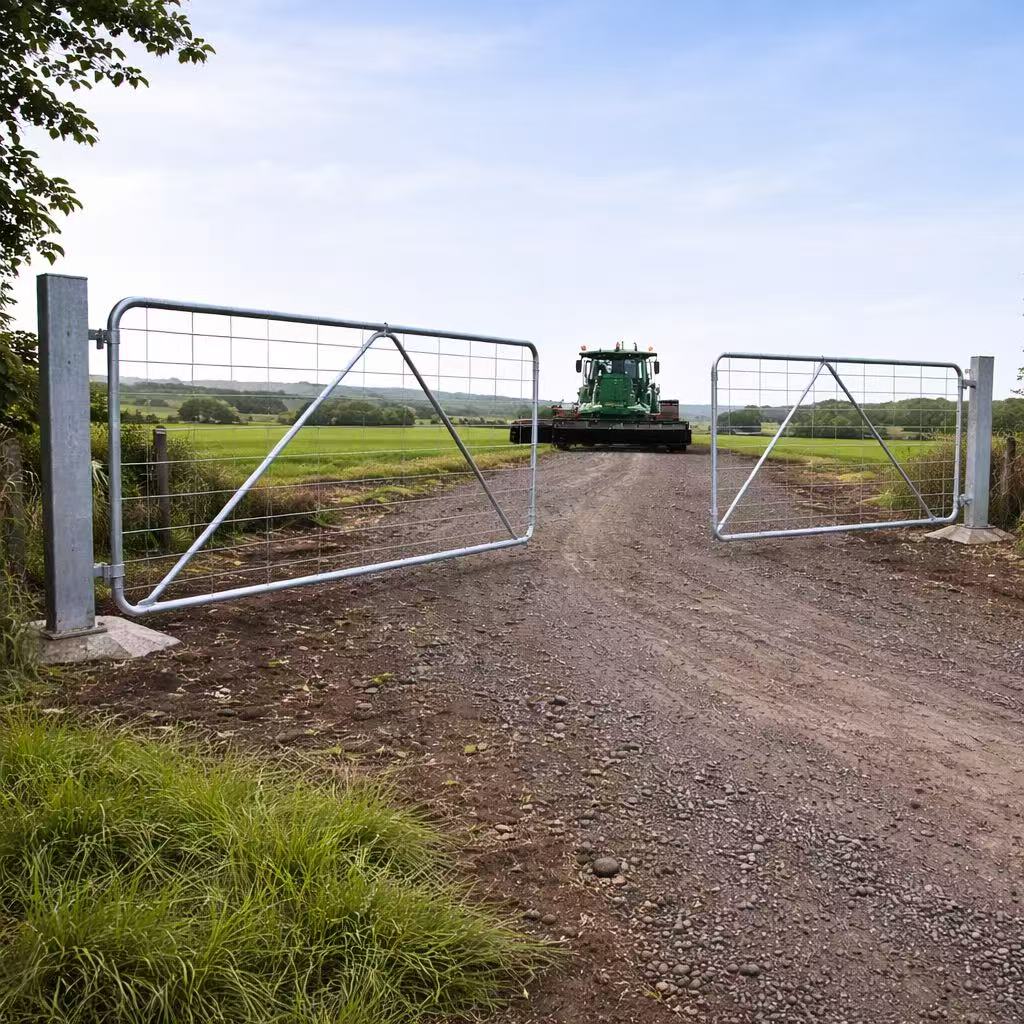

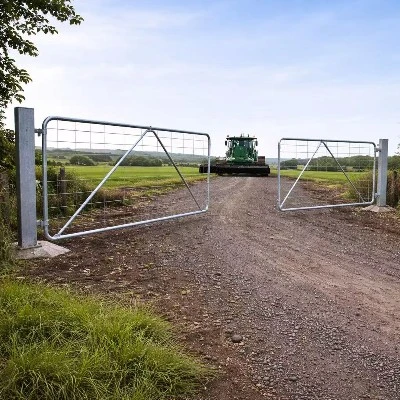

Large Agricultural Machinery Access and Field Entrance Gates

For primary field access points requiring passage of large equipment such as combine harvesters, gate widths may reach 5 to 8 meters. For such extra-wide gates, we employ a segmented design (e.g., double swing gates) with independently reinforced gate posts and foundation solutions for each leaf. Frame tubing is upgraded to 60x60x3.0mm, with potentially increased longitudinal and transverse bracing density to ensure structural stability across vast spans.

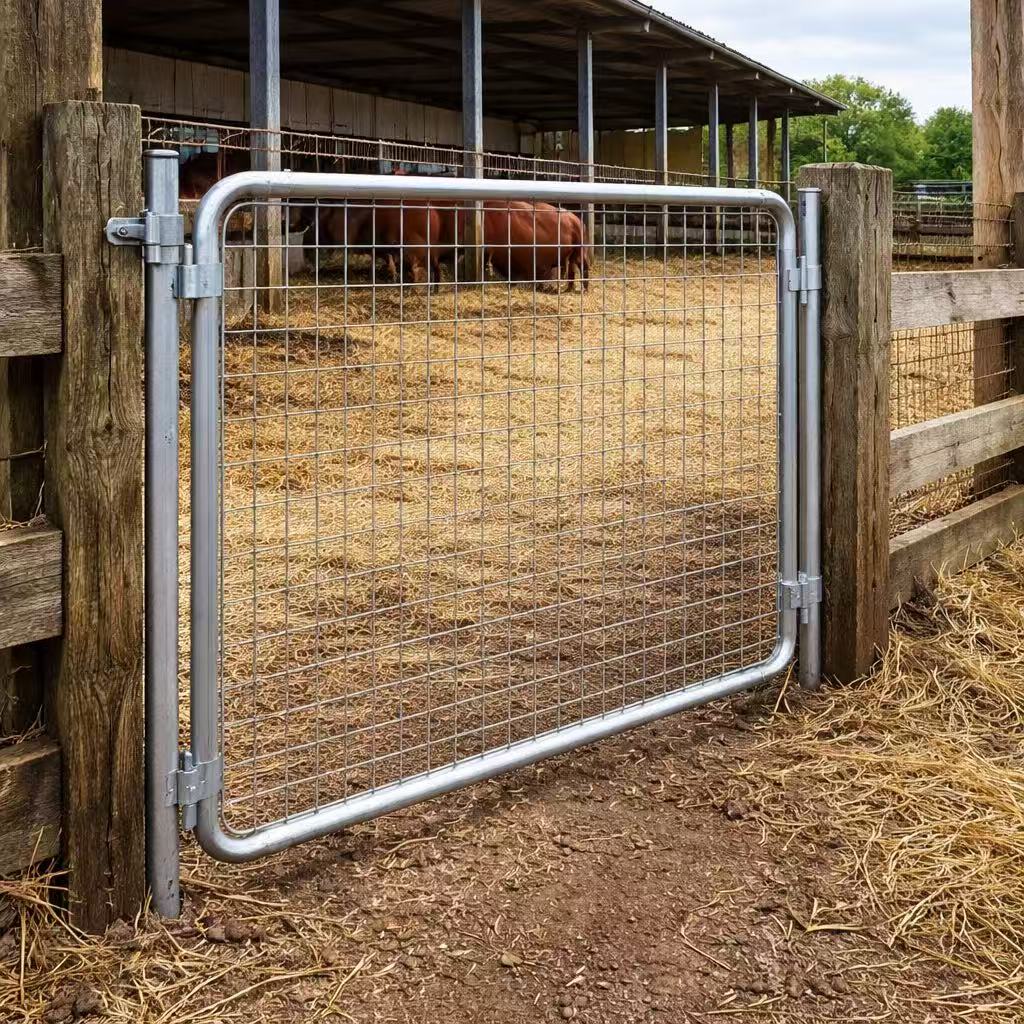

Internal Management Door for Livestock Areas

A small door used to separate different batches of poultry or livestock, or as a personnel access point, emphasizing portability and flexibility. It can feature a lighter frame (e.g., 30x30x1.8mm) and smaller mesh (e.g., 50mm x 50mm), equipped with a simple latch lock. This door can be produced as a standardized product for rapid delivery and installation.

why choose us

Lorem ipsum dolor sit amet consectetur adipisicing elit.

why choose our products

Engineering Design and Manufacturing Capabilities: We don't just produce gates; we deliver fencing solutions grounded in structural mechanics. Our technical team can review or design the most suitable gate specifications and installation plans based on site photos, soil conditions, livestock types, and access equipment you provide. This includes recommendations for gate posts and foundations to ensure long-term reliability.

End-to-End Quality Control & Traceability: We maintain comprehensive quality control checkpoints-from incoming steel material inspections (verifying material certificates and conducting spectral spot checks) to monitoring welding current/voltage, and verifying phosphating effectiveness before galvanizing or coating. Every gate undergoes final inspection for dimensions, operational smoothness, and appearance before shipment, with key product details traceable to the production team.

Deep Customization & Rapid Response: Our flexible production lines efficiently handle non-standard dimensions, special openings (e.g., pre-installed inner doors), custom colors, or unique lock requirements. Standard products have a typical production cycle of 15-25 business days, with expedited arrangements available based on your project timeline.

Convenient Packaging and Global Logistics Support: We employ export packaging featuring rust-proof paper wrapping for critical components + wooden crates for secure fixation, ensuring products remain protected from moisture and impact damage during long-distance sea transport. Packaging dimensions are optimized to maximize container space utilization, reducing your unit shipping costs. We provide complete export documentation and assist in arranging the most cost-effective logistics routes.
