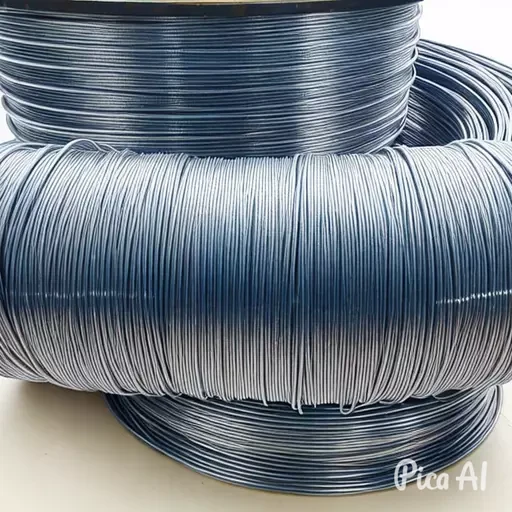

The Galvanized Steel Wire For Optical Cable

High-Performance Galvanized Steel Wire for Optical Cable Reinforcement

Engineered for Superior Tensile Strength & Corrosion Resistance

Our galvanized steel wire is specially designed for optical cable reinforcement, meeting stringent requirements of ISO 9001, ISO/TS 16949, and IEC 60794-1-21 standards. With wire diameters ranging from 0.6mm to 2.20mm and tensile strength up to 2160MPa, it provides critical mechanical protection for fiber optic cables in underground, aerial, and submarine installations.

Key Advantages Over Competitors:
✔ Precision Zinc Coating: Class B (60-115g/m²) ensures 15+ years corrosion resistance
✔ Custom Strength Grades: 1770MPa to 2160MPa via lead quenching treatment
✔ Tighter Tolerances: ±0.015mm for wires <1.0mm vs. industry ±0.025mm

Technical Specifications & Performance Data

Material Science & Durability

1. Optimized Alloy Composition

High-Carbon Steel:

Extra-High Grade: 0.65–0.83% Carbon for 2160MPa strength

Low Impurities: ≤0.045% Sulfur/Phosphorus (Reduces brittleness)

2. Corrosion Protection

Salt Spray Performance:

Class B coating withstands 500+ hours white rust (ISO 9227)

Case Study: Submarine cables using our wire show no degradation after 8 years in seawater

3. Mechanical Reliability

Fatigue Resistance: Survives 50M+ vibration cycles (IEC 61395)

Creep Control: <0.05% elongation after 10 years at 60% rated tension

Application-Specific Solutions

Quality Assurance Process

Raw Material Control:

High-carbon steel rods

Spectrometer verification of alloy composition

Galvanizing Precision:

Temperature-controlled zinc baths (445°C ±5°C)

Eddy-current coating thickness mapping

Mechanical Testing:

100% proof load testing at 1.5x operating tension

Torsion tests (≥20 twists without fracture per IEC 1897)

Packaging & Logistics

Standard: 500kg wooden spools

Custom:

Air freight: 50kg coils with desiccant packs

Sea transport: 20-ton bundles with corner protectors

Lead Time: 20-25 days for stock sizes
