Product Introduction:

Rated load: 35T

Lifting height: 3m / 9m

Machinery industry standard JB/T 5317-2016

Product features:

1. Shell: light and strong shell, high heat dissipation, fully sealed design suitable for use in poor working conditions;

2. Reverse phase protection device: a special electrical device, when the power wiring is wrong, the control circuit can not work;

3. Extreme limit switch: there are extreme limit switch devices for lifting heavy objects, so that the motor automatically stops to avoid chain exceeding and ensure safe quan;

4.24V/36V device: When the switch leakage occurs during operation, accidents can be avoided;

5. Brake device: This device can realize timely braking when the power is cut off;

6. Chain bag: light, beautiful, durable;

7. Chain: imported FEC80 strong heat treatment alloy steel chain.

Product use:

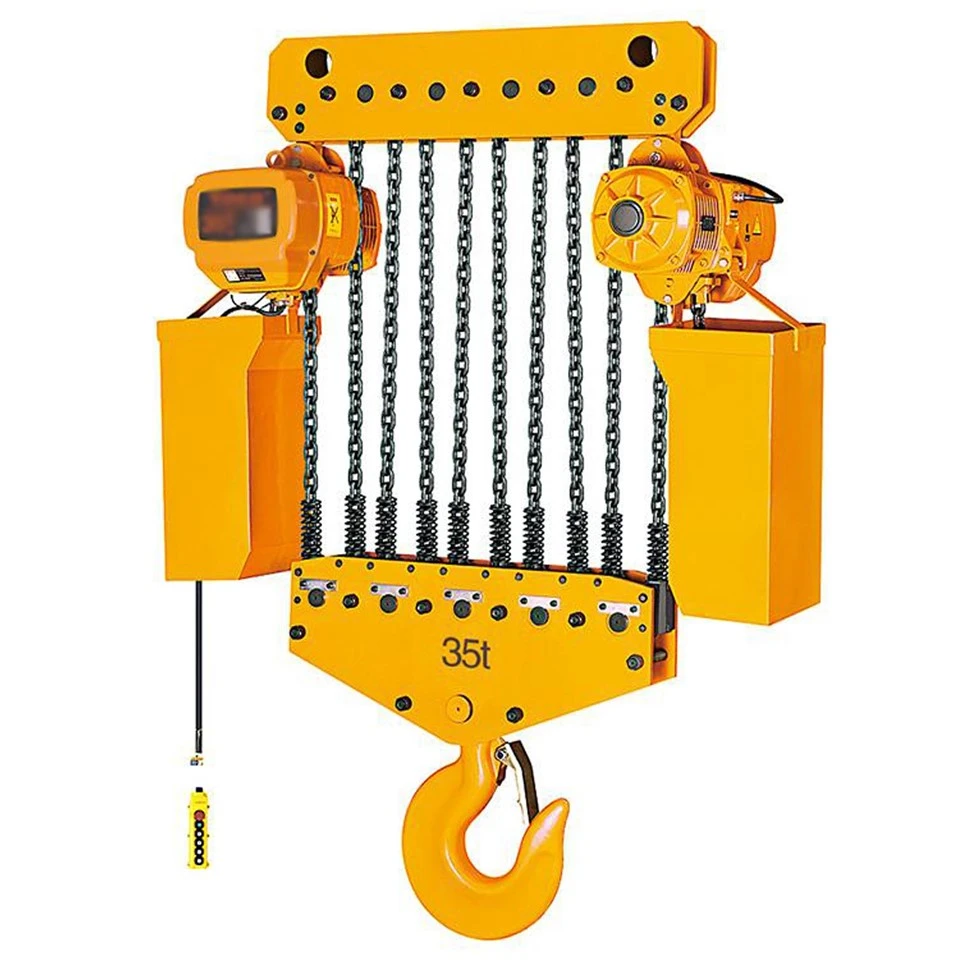

35 tons of chain electric hoist is equipped with 12 lifting chains, two chain belts, with I-steel for use. Chain electric hoist is a device composed of an electric motor, a transmission motor and a sprocket. Single-speed electric hoist is widely used in construction sites, factories, mines, warehouses and other places.

Maintenance:

1. Ring chain electric hoist gearbox oil from the start of operation up to 500 hours, please check whether the amount of oil is enough, later regularly check the lubricating oil situation, insufficient need to refuel;

2. When using electric hoists outdoors, rainproof equipment should be set up;

3. When the chain electric hoist is not used for a long time, it should be treated with rust prevention and cleaning and maintenance, and run up and down for 1-3 minutes to maintain its performance.

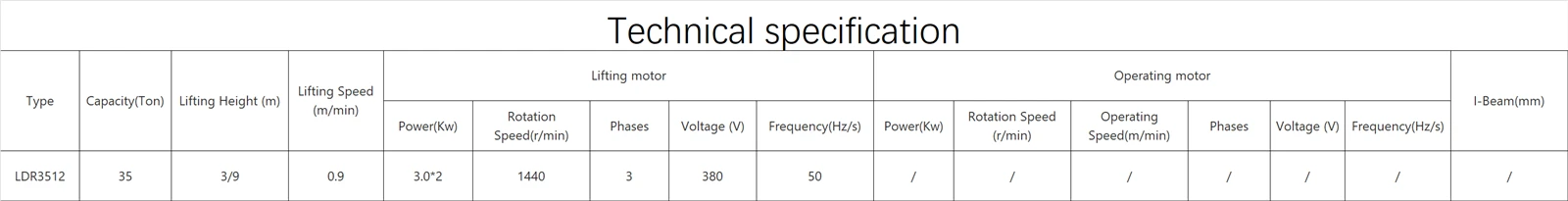

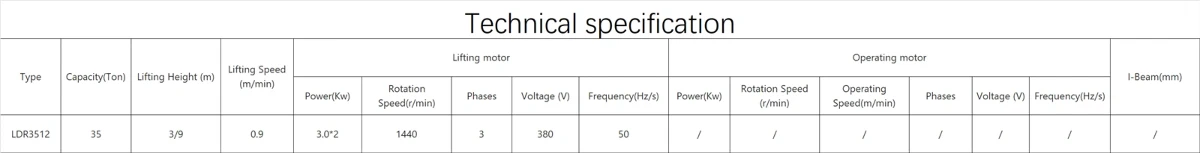

35T 1
