Nylon filament
:A high-performance synthetic fiber that provides reliable solutions for a wide range of industries
Introduction to Nylon Yarn
Nylon filament is a synthetic monofilament produced from polyamide resin via a melt-spinning process. Thanks to its exceptional mechanical properties and chemical stability, nylon filament has become an indispensable basic material in numerous industries, including electronics, construction, automotive, textiles, and handicraft manufacturing. Our nylon filament products are manufactured using high-quality imported nylon 6 (PA6) or nylon 66 (PA66) raw materials, produced through precision extrusion molding and multi-stage drawing processes, ensuring industry-leading standards in diameter uniformity, tensile strength, and surface finish.
Why Choose Nylon Filament as a Key Material?
Since its introduction in the 1930s, nylon has been a star product in the field of engineering plastics. In its filament form, nylon perfectly inherits the outstanding properties of nylon resin: high strength, high abrasion resistance, chemical resistance, low moisture absorption, and excellent flexibility. Compared to metal wires, nylon filaments offer unique advantages such as light weight, non-conductivity, corrosion resistance, and shock and noise absorption; compared to ordinary plastic filaments, nylon's wear resistance and fatigue resistance are far superior. These characteristics make nylon filaments the ideal material choice for applications requiring long-term, stable operation in complex environments.
An In-Depth Analysis of Core Product Features and Process Advantages

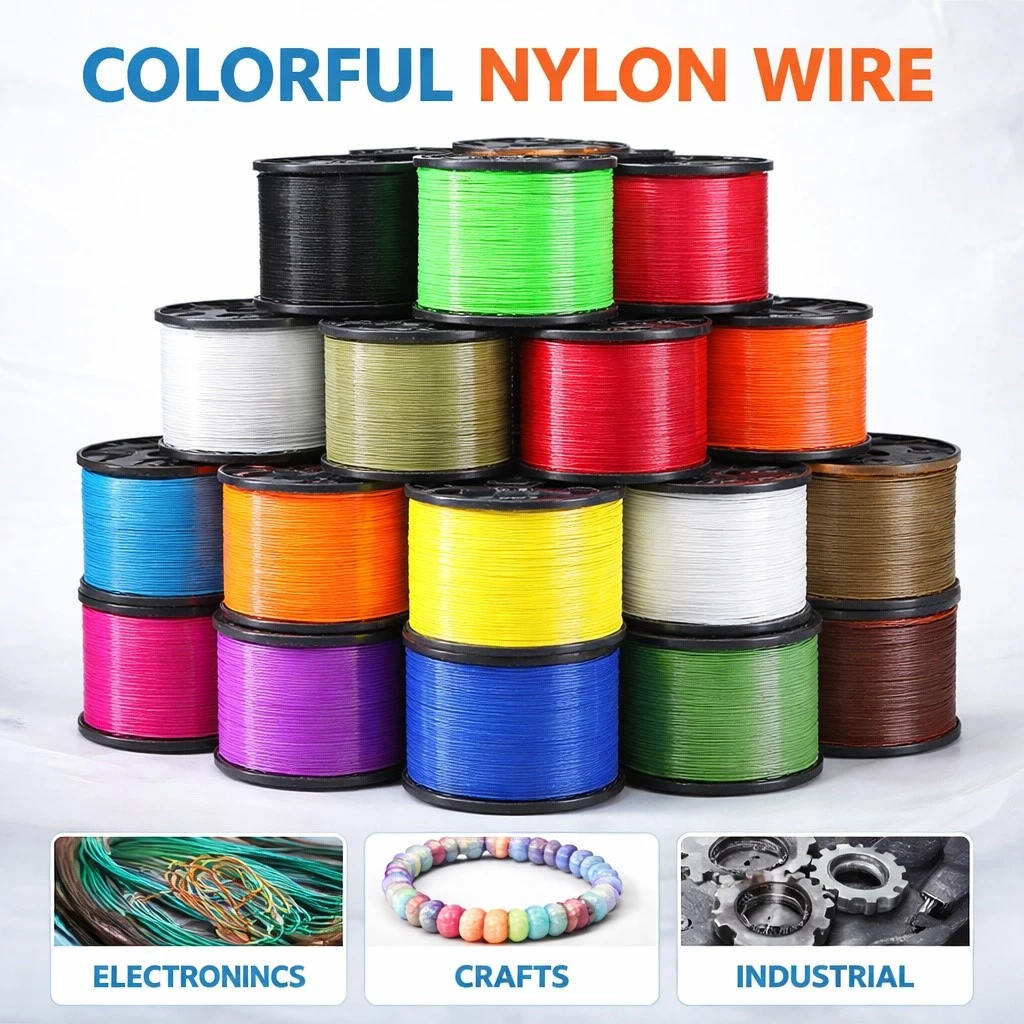

Available in multiple colors for easy identification and an attractive design
Our nylon threads come in a wide range of colors, including standard shades like white, black, red, orange, yellow, green, blue, and purple, with custom options available. This variety is key in electronics for color-coded wiring, in crafts for creative design, and in industrial settings for easy bundling and labeling. All colorants are eco-friendly masterbatches that fully integrate during extrusion, ensuring vibrant, long-lasting colors with excellent light and aging resistance.
Precise diameter grading and tolerance control
Our nylon filaments are available in diameters from 0.45 mm to 1.50 mm, with custom sizes from 0.20 mm to 2.50 mm upon request:
0.45–0.60 mm: Fine-diameter series for precision electronics, micro-braiding, and jewelry threading.
0.65–1.00 mm: General-purpose for fishing nets, racket stringing, and industrial rope strands.
1.05–1.50 mm: Heavy-duty for guy wires, tow ropes, and heavy lashing.
Diameter tolerances are strictly held to ±0.02 mm, ensuring smooth passage through guides and tensioners in automated processes-significantly reducing downtime.
.
Two strength grades to meet different load requirements
Our nylon cord's mechanical properties are determined by its base material (PA6 or PA66) and drawing process. We offer two strength grades:
Standard Grade (550–750 MPa): PA6-based, ideal for wiring harnesses, craft weaving, and light bundling-offering flexibility and cost-effectiveness.
High-Strength Grade (930–1150 MPa): PA66-based with high-draw processing for near-metal strength. Perfect for heavy-load towing, industrial lifting, and fishing nets. A 1.0mm strand breaks at >90kg-just 1/6 the weight of steel wire.
Excellent overall physical and chemical properties
Nylon offers excellent abrasion resistance-one of the best among thermoplastics-with a low coefficient of friction even without lubrication. It resists most organic solvents, oils, fuels, and weak alkalis, making it suitable for chemical and automotive environments. Although nylon absorbs some moisture, our special modification ensures excellent dimensional stability in humid conditions. Temperature resistance: PA6 handles 100–120°C continuously, PA66 up to 120–150°C, with even better short-term performance.
Detailed Technical Specifications Table
| Parameter Category | Detailed Items | Technical Specifications and Scope | Test Standards/Notes |
| Basic Specifications | Material Type | Nylon 6 (PA6) / Nylon 66 (PA66) | Select as needed |
| Single-strand diameter | 0.45 mm, 0.50 mm, 0.55 mm, 0.60 mm, 0.65 mm, 0.70 mm, 0.75 mm, 0.80 mm, 0.85 mm, 0.90 mm, 0.95 mm, 1.00 mm, 1.10 mm, 1.20 mm, 1.30 mm, 1.40 mm, 1.50 mm | Custom sizes available | |
| Diameter tolerance | ±0.02 mm | Online inspection using a laser diameter gauge | |
| Color Options | White, Black, Red, Orange, Yellow, Green, Blue, Purple, and Custom Colors | Colored Masterbatch | |
| Mechanical Properties | Tensile Strength (PA6) | 550–750 MPa | ISO 2062 / ASTM D2256 |
| Tensile strength (PA66) | 930–1150 MPa | ISO 2062 / ASTM D2256 | |
| Elongation at break | 15%–25% | Depending on the strength grade | |
| Knot strength retention rate | ≥ 80% | Strength after knotting | |
| Modulus of elasticity | 3000–5000 MPa | Stiffness index | |
| Physical Properties | Density | 1.14 g/cm³ | Lightweight material |
| Melting point (PA6) | 215–225 °C | / | |
| Melting point (PA66) | 250–260 °C | / | |
| Water absorption (24 hours) | ≤ 1.5% | Influenced by ambient humidity | |
| Abrasion resistance | Excellent (Taber abrasion test) | Good self-lubricating properties | |
| Chemical Properties | Acid Resistance | Resistant to weak acids; susceptible to corrosion by strong acids | |
| Alkali resistance | Good resistance to weak alkalis | ||
| Oil resistance | Excellent | Resistant to mineral oil and fuel | |
| Packaging | Plastic spool | 50g, 100g, 200g, 500g, 1kg per spool | Suitable for precision work |
| I-beam Reels (Large Reels) | 2 kg, 5 kg, 10 kg, 20 kg per reel | Ideal for bulk use | |
| Inner packaging | Sealed plastic bag + desiccant | Moisture protection | |
| Outer packaging | High-strength cardboard box / export-grade wooden crate | Suitable for international shipping |
Professional Application Scenarios and Selection Guide
Our nylon threads serve five key industries:
Electronics: 0.45–0.80mm PA6 colored threads for coil winding and wire harnessing. Insulation, solder resistance, and flame retardancy meet industry standards; color-coding boosts assembly efficiency.
Fishing & Sports: 0.50–1.20mm PA66 high-strength filaments for nets and racket strings. Ultra-high strength and abrasion resistance deliver double the service life of polyethylene nets.
Crafts & Jewelry: 0.45–0.80mm PA6 colored threads for beading and weaving. Soft, vibrant, and holds knots well for intricate, durable designs.
Industrial Lashing: 0.80–1.50mm PA66 high-strength cords for cable bundling and cargo reinforcement. Lightweight alternative to steel wire-a 1.5mm strand breaks at >200kg.
Automotive & Machinery: 0.60–1.20mm PA66 cords for interior trim, hose protection, and drive cables. Vibration, oil, and temperature resistant for harsh engine bay conditions.
why choose us
Your Trusted Specialist Supplier of Nylon Filament
why choose our products
Specializing in High-Performance Synthetic Fibers: With over 15 years of experience in the R&D and production of nylon filament, we possess a deep understanding of nylon material properties and processing techniques. We maintain long-term partnerships with leading domestic and international raw material suppliers-such as BASF, DuPont, and Shinma-to ensure product quality is controlled from the source.
Precision Manufacturing and Strict Quality Control: We utilize advanced multi-stage drawing production lines and online diameter monitoring systems to ensure diameter accuracy and consistent performance for every meter of nylon filament. In our laboratory, each batch undergoes testing for tensile strength, elongation at break, knot strength, and abrasion resistance, and we provide comprehensive test reports. Our products comply with environmental regulations such as RoHS and REACH.
Comprehensive Customization Capabilities: Whether it involves special diameters (e.g., 1.05 mm), specific colors (e.g., Pantone color customization), unique packaging formats (e.g., double-length rolls), or modified formulations (e.g., flame retardant, UV-resistant, impact-modified), our technical team responds swiftly to provide end-to-end services from sample prototyping to stable mass production.
Stable Supply and Fast Delivery: We operate multiple automated production lines and maintain stock of standard specifications to meet all needs, from sample testing to large-scale production. Standard-packaged products can be shipped within 3–5 business days, while custom products typically have a production lead time of 10–15 business days. Our export packaging is sturdy and reliable, ensuring safe delivery worldwide.
Application-Oriented Technical Support: We understand that selecting the right material is key to project success. Our team of engineers is eager to discuss your specific application scenarios, assist with material selection, and provide ongoing technical guidance throughout the usage process. Your success is our ultimate goal.
Choosing us means choosing a reliable partner that places quality, innovation, and service at the core of our values. We sincerely invite you to request free samples for prototyping and experience firsthand the exceptional quality of our nylon filaments in terms of strength, texture, and color performance. Let's start with a high-quality nylon filament and weave a brighter future together.
