Product Introduction:

Rated load: 10T

Lifting height: 3m / 9m

Machinery industry standard JB/T 5317-2016

Product features:

1. Shell: light and strong shell, high heat dissipation, fully sealed design suitable for use in poor working conditions;

2. Reverse phase protection device: a special electrical device, when the power wiring is wrong, the control circuit can not work;

3. Extreme limit switch: there are extreme limit switch devices for lifting heavy objects, so that the motor automatically stops to avoid chain exceeding and ensure safe quan;

4.24V/36V device: When the switch leakage occurs during operation, accidents can be avoided;

5. Brake device: This device can realize timely braking when the power is cut off;

6. Chain bag: light, beautiful, durable;

7. Chain: imported FEC80 strong heat treatment alloy steel chain.

Product use:

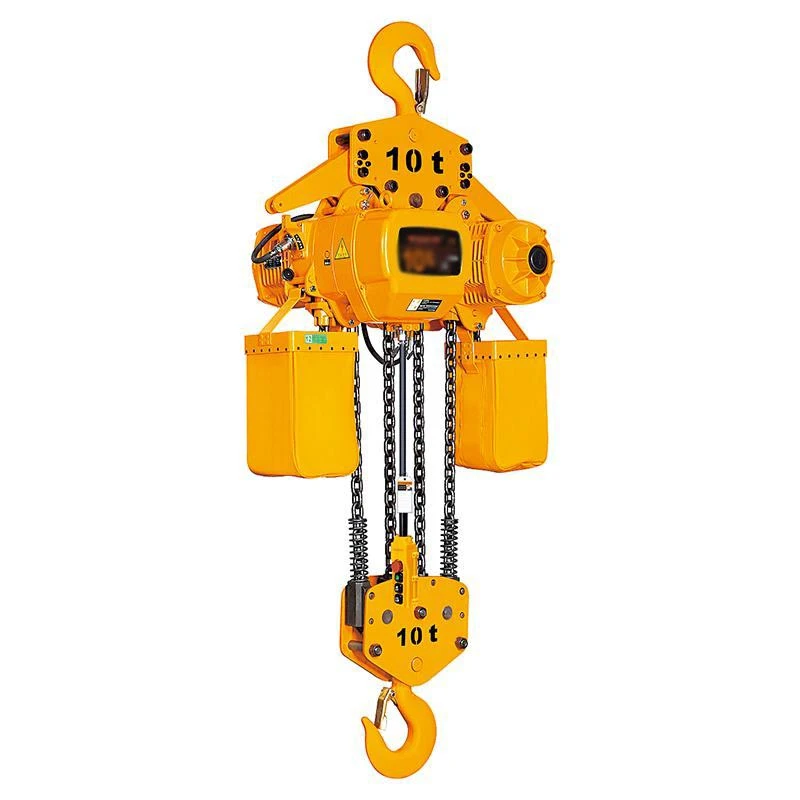

10 tons electric hoist is equipped with 4 lifting chains, two chain bags, single-speed electric hoist used in construction sites, factories, mines, warehouses and other places.

Note:

1. The chain electric hoist has been refueled before leaving the factory, and the first use does not need refueling, and the small bottle of oil is chain oil, which is brushed on the chain when used. The electric hoist is generally used for five months (it can also be refueled according to the specific situation);

2. Electric hoist comes with limit, when the goods rise to the top of the automatic power off, but does not play a full control role, if a long time will cause limit failure, the hoist is easy to be broken. Therefore, the operation should pay attention to the top, to avoid a long time or multiple bumping limits;

3. Do not stay the chain. Do not twist or tie the chain. Always check whether the stopper is sensitive and reliable.

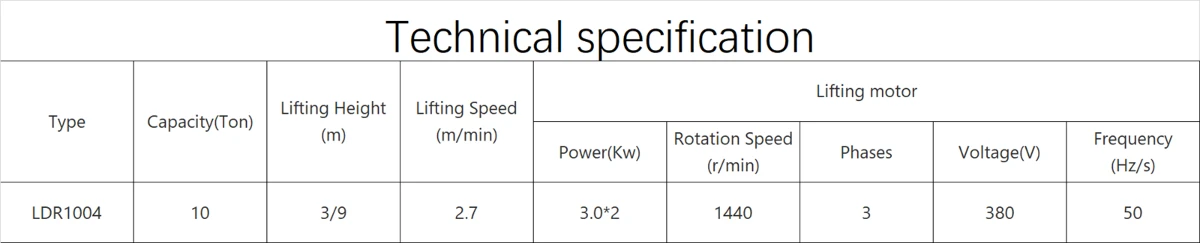

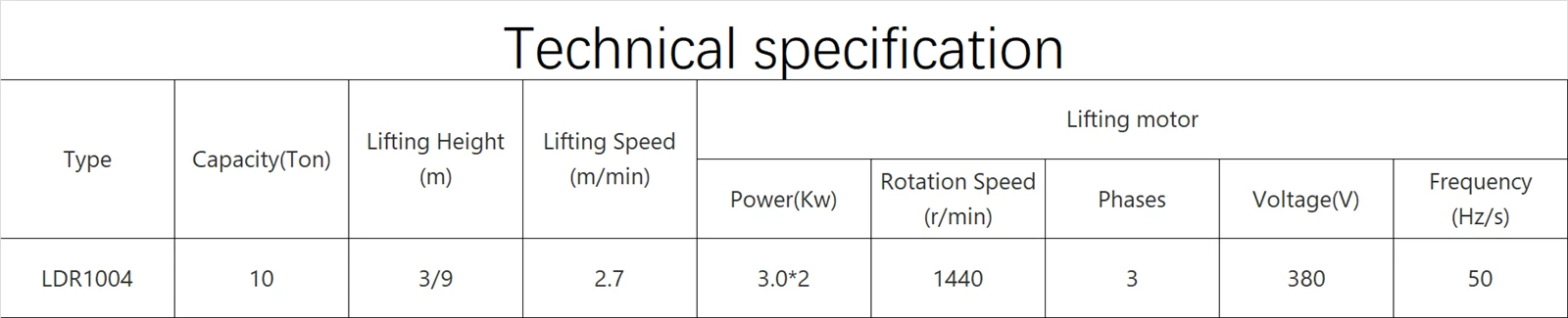

10T 1
