Product Introduction:

Rated load: 25T

Lifting height: 3m / 9m

Machinery industry standard JB/T 5317-2016

Product features:

1. Shell: light and strong shell, high heat dissipation, fully sealed design suitable for use in poor working conditions;

2. Reverse phase protection device: a special electrical device, when the power wiring is wrong, the control circuit can not work;

3. Extreme limit switch: there are extreme limit switch devices for lifting heavy objects, so that the motor automatically stops to avoid chain exceeding and ensure safe quan;

4.24V/36V device: When the switch leakage occurs during operation, accidents can be avoided;

5. Brake device: This device can realize timely braking when the power is cut off;

6. Chain bag: light, beautiful, durable;

7. Chain: imported FEC80 strong heat treatment alloy steel chain.

Product use:

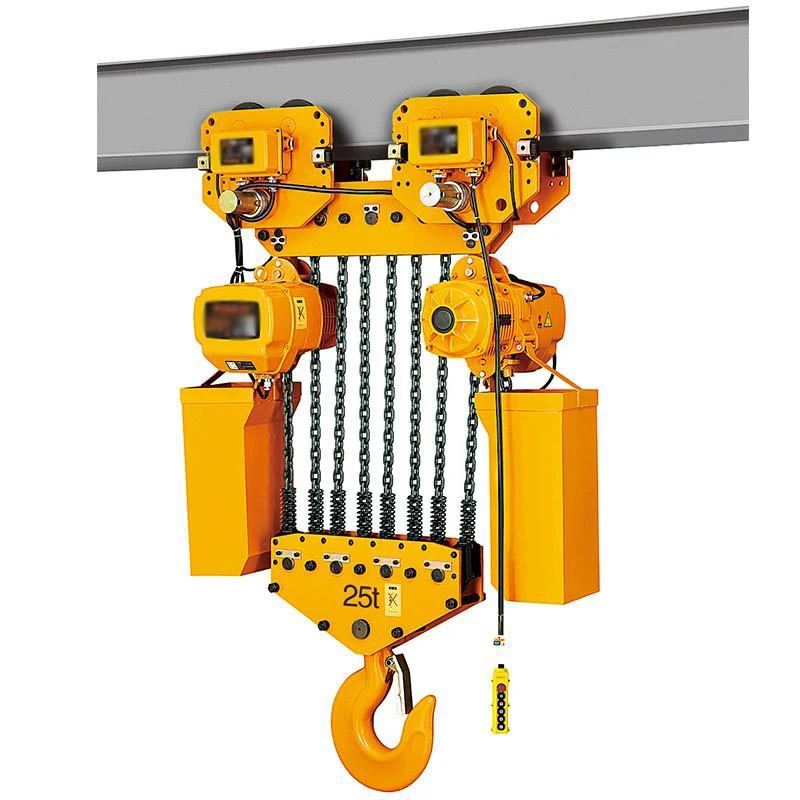

25 tons running electric hoist is equipped with two electric sports cars, 8 lifting chains, chain electric hoist is widely used in a variety of light and small heavy lifting, can also be equipped with aerial crane or cantilever crane, formed suitable for low-space operation logistics transportation system, is a kind of improve working conditions, improve work efficiency of one of the equipment, you can also choose wireless remote control.

Note:

1. When the running electric hoist is installed for the first time, the body will tilt when it is unloaded, which is normal and can be used with confidence;

2. As long as the chain tail naturally falls in the chain bag, it is good (if it will not limit the card or even break the gear box card);

3. Do not stay the chain. Do not twist or tie the chain. Always check whether the stopper is sensitive and reliable.

Maintenance:

1. When using electric chain hoist outdoors, rainproof equipment should be set up;

2. Often keep the chain electric hoist parts dry, when the operation is completed, please drive the hoist above the wet area, high temperature area or chemical area to maintain its performance;

3. Maintenance of the chain electric hoist chain, the chain oil lubrication, high dust factory oil, and regularly clear the chain and limited guide groove group in the foreign body, to ensure the smooth operation of the chain.
